CMF | April 2021
MatrixMIDFACE 1.3 Line Extension
The MatrixMIDFACE System has been expanded with the new plates 1.3 and 1.3 mm screws
The new plates 1.3 and 1.3 mm screws are aligned with the Matrix concept providing low profile plates and screws in a modular system with a wide range of plate shapes and screw options for fracture fixation. The new 1.3 mm screws (existing Matrix Screws are 1.55 mm in thread diameter) have allowed the distance between the screw holes in the plates 1.3 to be significantly reduced, providing more fixation options in the smaller plates (Fig 1). The 1.3 mm screws are not compatible with the existing Matrix plates 1.5 designed for 1.55 m screws and vice versa. The instrumentation for both Matrix Systems is identical. A smaller 1.0 mm drill bit, required for the 1.3 mm screws, has been included from the COMPACT Midface System. With the inclusion of new plates and screws, the MatrixMIDFACE System supersedes the COMPACT Midface System and offers implants in a range of sizes and shapes suitable for a variety of applications.

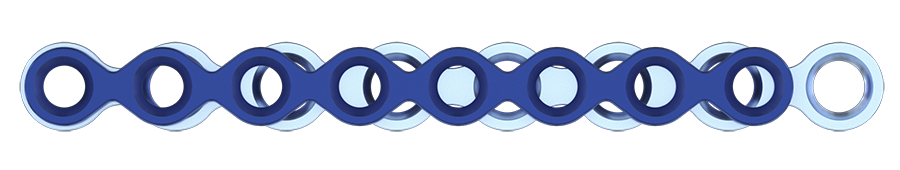

Fig 2 top view indicating the screw hole distances: new Adaption Plate 1.3, 8 hole (dark blue); Adaption Plate 1.5, 8 hole (light blue).
Fig 2 side view of new plate 1.3 with 1.3 mm screw (left); plate 1.5 with 1.5 mm screw (right).
-
MatrixMANDIBLE 2.4 mm Cortex Screw Line Extension
Offering better flexibility for CMF surgeons in the treatment of mandibular fractures.
-
Advanced Craniomaxillofacial Surgery
The comprehensive, highly anticipated follow-up to the original work on Principles of Internal Fixation of the Craniomaxillofacial Skeleton.
-

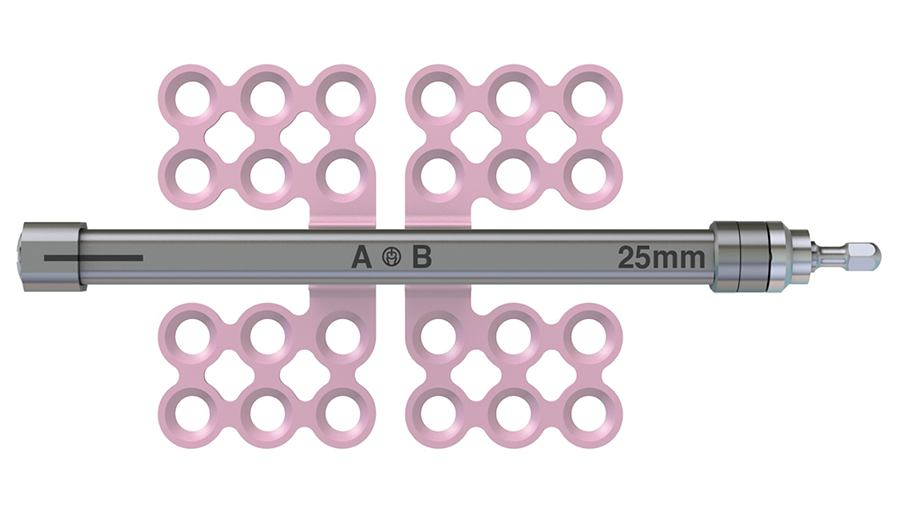

CMF Distractor System
Improving an established best in class solution to correcting congenital deficiencies or acquired defects.
-

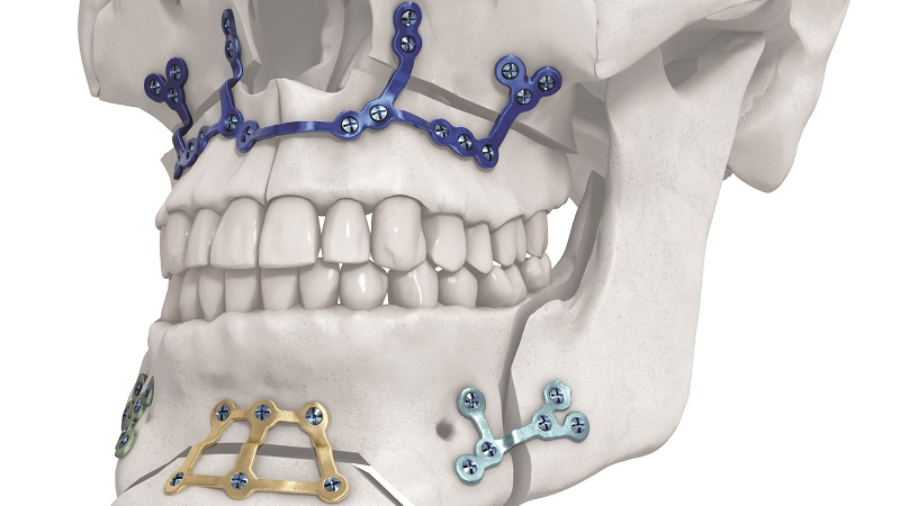

Patient Specific Orthognathic Plates
The TruMatch Orthognathics platform integrates virtual surgical planning, and the production of intra-operative patient-specific tools and personalized implants.
-
Surgical technique guides for 3D Patient Specific Implants
New techniques of three-dimensional imaging as well as rapid developments in computer-aided design (CAD) and computer-aided manufacturing (CAM) are changing the face of modern medicine.
-

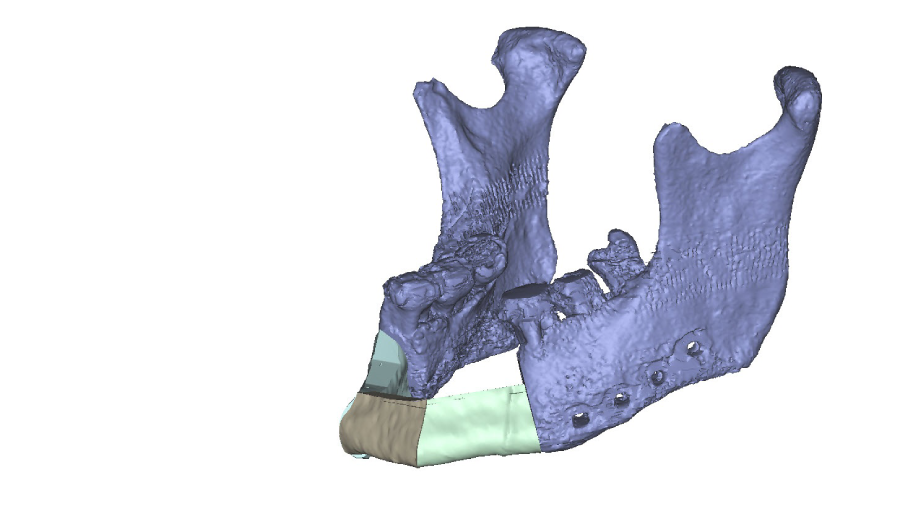

Trumatch CMF Solutions: Mandibular Reconstruction
The use of virtual surgical planning in conjunction with STL models and the biplanar cutting guide offers many advantages in reconstructive mandibular and maxillary surgery.
