Patellofemoral instability after total knee arthroplasty

Patellofemoral instability after total knee arthroplasty (TKA) is a serious complication that has significant impact on knee function. The underlying causes are usually related to the surgical technique. Most often, patellar instability results from component malposition, limb malalignment, improper patellar preparation, or soft-tissue imbalance. Understanding the root causes helps to prevent these complications as well as to manage them successfully.


Factors determining patellofemoral stability

Patellofemoral (PF) instability after TKA has been reported in up to 20% of TKAs [1]. Most often, it is caused by technical errors during surgery [1, 2]. Given the complexity of TKA biomechanics, many technical parameters are susceptible to error. Therefore, in most cases, PF instability cannot be traced back to a single cause. More likely, there are multiple contributors.

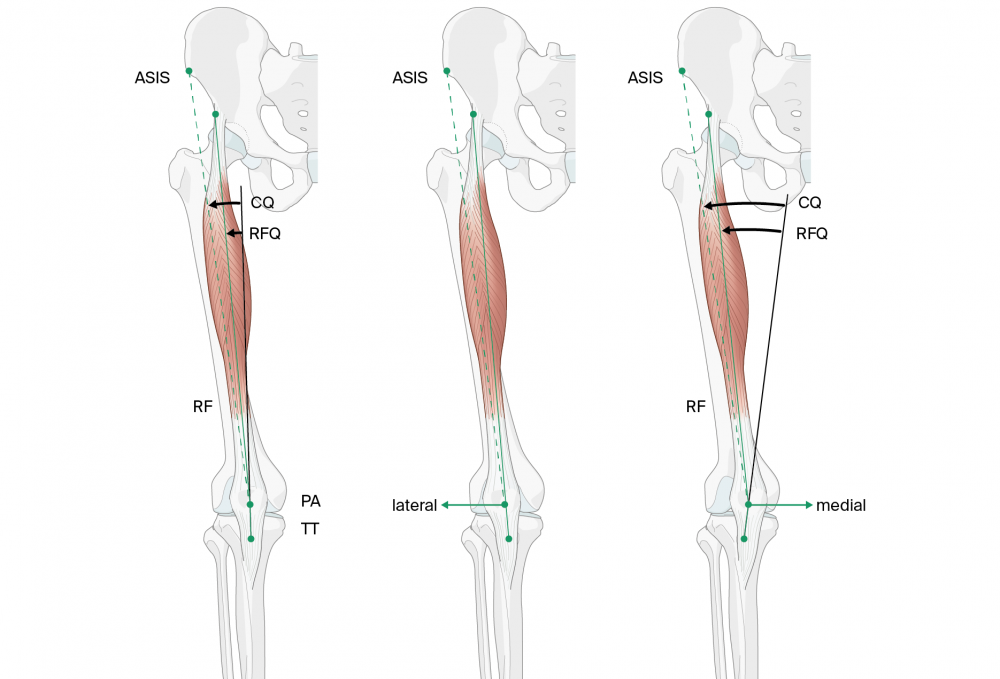

As a general rule, any manipulation of the normal anatomical and kinematic relationships of knee structures that increases tension in the lateral retinaculum or increases the quadriceps angle, or Q-angle (Figure 1), will produce an abnormal, laterally-directed muscle vector and thus cause lateral maltracking of the patella, instability of the PF joint, and more serious patellar complications if left untreated [3, 4].

Guillermo Bonilla, clinical professor for orthopedic surgery at the Universidad de los Andes in Bogota, Colombia, emphasizes: “In order to adequately treat problems arising from patellar instability, it is essential to understand the underlying biomechanical mechanisms.” So, let us consider and analyze the major factors that may lead to patellar instability.


Guillermo Bonilla

Fundación Santa Fe de Bogotá University Hospital
Bogotá, Colombia

First and foremost, excessive valgus alignment is an important risk factor, since it leads to a mismatch of the trochlear groove and the extensor vector [4]. This encumbers proper patellar tracking and may cause the patella to tilt, subluxate, or even dislocate. A similar mechanism takes effect when a normal Q-angle is not restored. Especially patients with severe preoperative valgus or external rotational deformity, preoperative maltracking [5], and loss of bone stock in the distal lateral condyle are at risk [3]. In patients with pronounced preoperative valgus, the main culprit for this predisposition is usually the retraction of the lateral retinaculum.

Beyond the overall leg alignment, individual component positioning is the most important contributor. Internal rotation of the femoral or the tibial component [5-10] as well as medialization of the femoral component and incorrect placement of the patellar component [10, 11] appear the most obvious.

An internally rotated femoral component shifts the trochlear groove medially, thus increasing the distance to the patella, which tracks laterally relative to the femur. Through the tension exerted by the lateral retinaculum, the patella is pulled sideways. This may lead to patellar tilt, subluxation, or even dislocation [4].

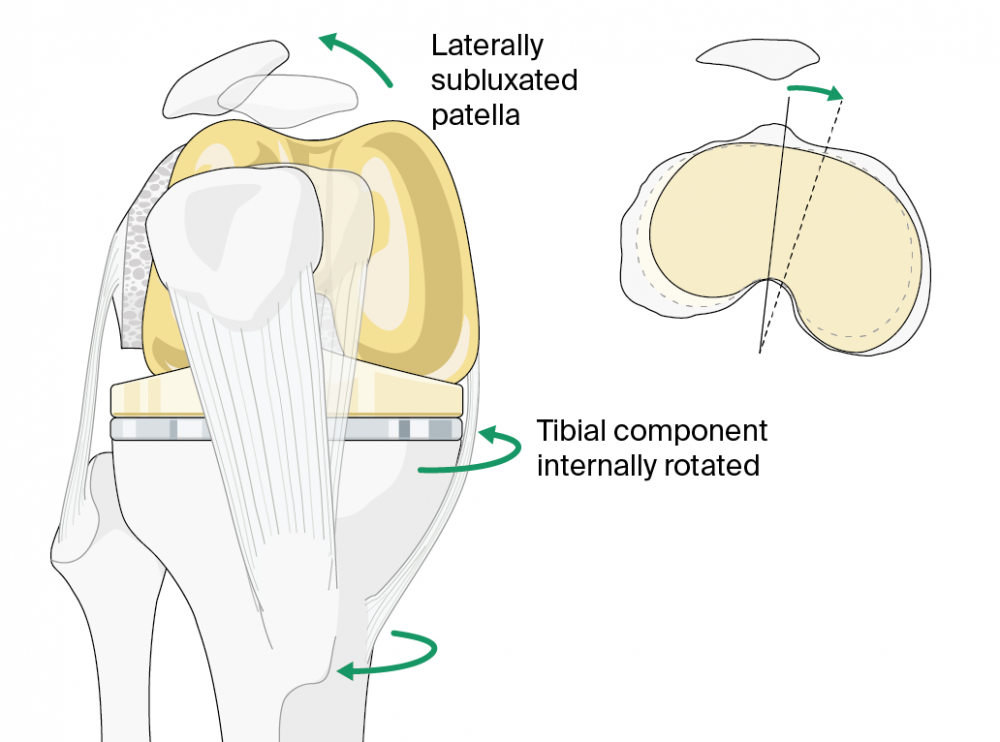

On the other hand, an internally rotated tibial component causes the tibia to rotate externally during knee flexion (Figure 2). This drives the tibial tubercle laterally, which increases the Q-angle and thus leads to lateral tracking. Depending on the severity, this may again lead to patellar tilt, subluxation, or dislocation.

Did you know?

When rotational platforms were introduced, there were high hopes that through the inherent self-alignment, a certain degree of malrotation could be corrected for. Unfortunately, this was not the case. Biomechanical studies analyzing the effect of rotational platforms on patellar tracking in the presence of malrotated femoral components did not find a significant compensatory effect [6, 7], and neither did a large randomized clinical study [12].

Read the full article with your AO login

  • Placement of the prosthetic patella
  • Medialization of the femoral component
  • Soft-tissue imbalance
  • Other risk factors
  • Diagnostic workup in PF instability
  • The clinical workup
  • The radiological workup
  • Management algorithm
  • Outcome and conclusion

Part 2 | Patellar fractures after total knee arthroplasty (TKA)

Part 3 | Extensor tendon rupture after total knee arthroplasty (TKA)

Additional AO resources on this topic

Access videos, tools, and other assets to learn more about this topic.

Contributing experts

This series of articles was created with the support of the following specialists (in alphabetical order):

Guillermo Bonilla

Fundación Santa Fe de Bogotá University Hospital
Bogotá, Colombia

Clemens Gwinner

Charité—University Medicine Berlin
Berlin, Germany

Yixin Zhou

Beijing Jishuitan Hospital
Beijing, China

This issue was  written by Elke Rometsch, AO Innovation Translation Center, Clinical Science, Switzerland.
