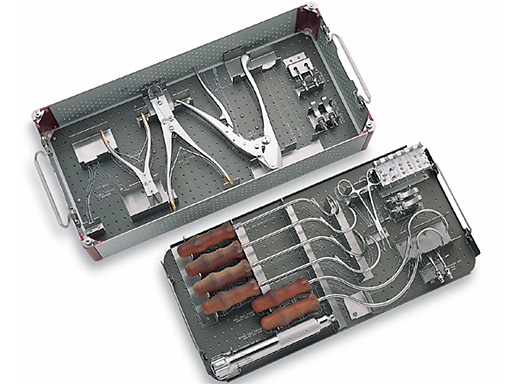

Orthopaedic Cable System
The system contains 1.0 and 1.7mm cable in Stainless Steel and Titanium-Aluminum-Niobium (TAN) and Accessories.

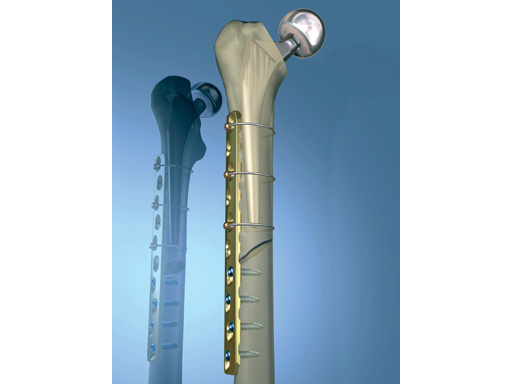

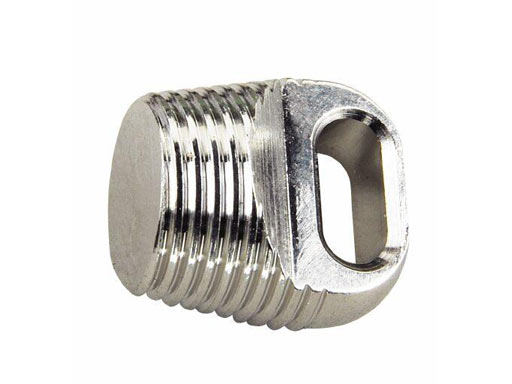

LCP Wire Mount
The Wire Mount for LCP 4.5/5.0 plates facilitates the additional use of cerclage wires in plate fixation of shaft fractures in general, but of periprosthetic fractures in particular. The Wire Mount is inserted in the selected plates hole and guarantees a fixed position of the wires in direct relation to the underlying plate. It is available in Stainless Steel and Titanium.

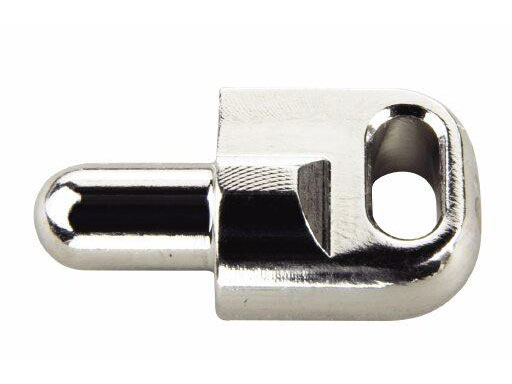

Cerclage Positioning Pin
Sterile threaded and non-threaded Cerclage Positioning Pins for the Orthopedic Cable System are now available in 3.5 and 4.5 mm sizes, manufactured from titanium and stainless steel.

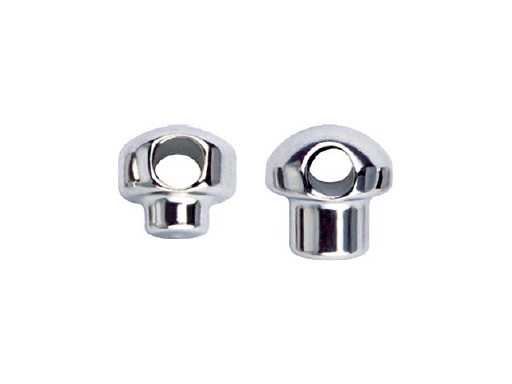

T15 and T25 Hex Cerclage Buttons
The existing Hex Cerclage Buttons do not fit Stardrive recesses since their pins are larger. Therefore, new T15 and T25 Hex Cerclage Buttons were designed to fit both Stardrive and hex recesses at the same time.
The new T15 Cerclage Button replaces the former 2.5 mm Cerclage Button, the T25 replaces the 3.5 mm Cerclage Button.

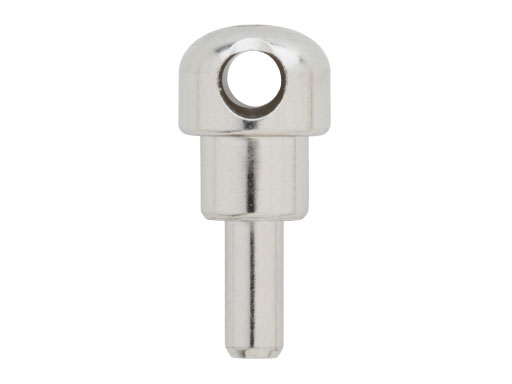

Cannulated 4.0?mm Hex Cerclage Cable Buttons
The cannulated 4.0?mm hex cerclage buttons are part of the orthopedic cable system. Cables placed through such buttons can be used for temporary reduction of spiral fractures and for additional fixation when screws are not possible, particularly in treatment of periprosthetic fractures.
Cable buttons help to position the cable over screws and prevent slippage. Currently, cable buttons exist for noncannulated screws. The new cannulated cable buttons fit the recess of 5.0?mm, 6.5?mm and 7.3?mm cannulated screws. The cerclage buttons are available in titanium and stainless steel.

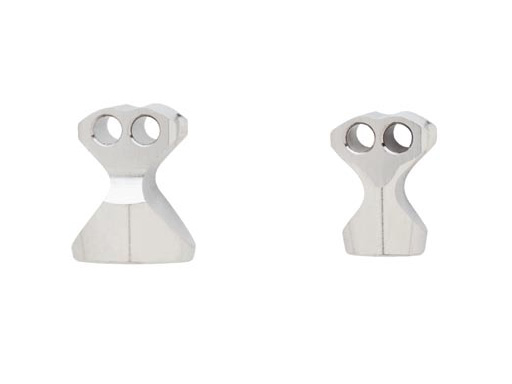

Crimp Positioning Pins
The crimp positioning pins are used in conjunction with the orthopedic cable system. It combines a crimp and positioning pin into one in order to simplify cable procedure and reduce incision size. It is used to maintain the position of the cable relative to the plate. The crimp positioning pin is available in two sizes to fit 5.0 mm or 7.3 mm locking holes.
Hazards and labeling
Due to varying countries’ legal and regulatory approval requirements, consult the appropriate local product labeling for approved intended use of the products described on this website. All devices on this website are approved by the AO Technical Commission. For logistical reasons, these devices may not be available in all countries worldwide at the date of publication.
This work was produced by AO Foundation, Switzerland. All rights reserved by AO Foundation. This publication, including all parts thereof, is legally protected by copyright.
Any use, exploitation or commercialization outside the narrow limits set forth by copyright legislation and the restrictions on use laid out below, without the publisher‘s consent, is illegal and liable to prosecution. This applies in particular to photostat reproduction, copying, scanning or duplication of any kind, translation, preparation of microfilms, electronic data processing, and storage such as making this publication available on Intranet or Internet.
Some of the products, names, instruments, treatments, logos, designs, etc referred to in this publication are also protected by patents, trademarks or by other intellectual property protection laws (eg, “AO” and the AO logo are subject to trademark applications/registrations) even though specific reference to this fact is not always made in the text. Therefore, the appearance of a name, instrument, etc without designation as proprietary is not to be construed as a representation by the publisher that it is in the public domain.
Restrictions on use: The rightful owner of an authorized copy of this work may use it for educational and research purposes only. Single images or illustrations may be copied for research or educational purposes only. The images or illustrations may not be altered in any way and need to carry the following statement of origin “Copyright by AO Foundation, Switzerland”.
Check www.aofoundation.org/disclaimer for more information.
If you have any comments or questions on the articles or the new devices, please do not hesitate to contact us.
