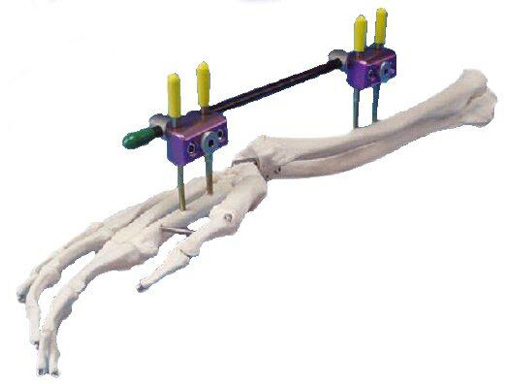

Low profile distal radius fixator
The low profile distal radius fixator is similar to the distal radius fixator (DRF) in function, but is simpler in design and has a lower profile. The low profile distal radius fixator is a 6 mm carbon fiber rod system, as compared to the 8 mm carbon fiber rod system of the DRF. The low profile distal radius fixator is offered in sterile packaged kits including all of the necessary hardware and instrumentation. There are two different options of Schanz screws, 4.0 mm/2.5 mm trocar tip and 4.0 mm/3.0 mm self-drilling. Two different length options of carbon fiber rods, 200 mm and 220 mm, are available. The low profile distal radius fixator comes preassembled in the package.
