LCP Distal Tibia Plate

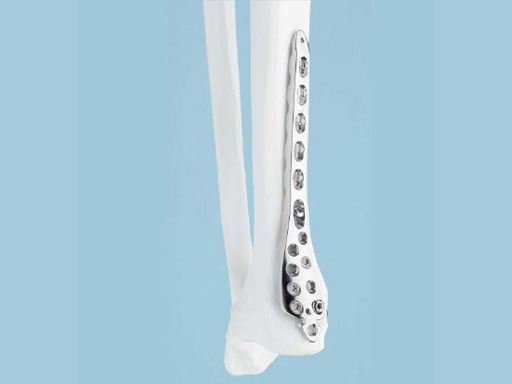

The Distal Tibia Plate is anatomically pre-shaped and locked screws provide angular stability. In the shaft area this plate has a standard dimension and a limited contact profile, more distally the plate gets thinner to spare the delicate soft tissues over the medial tibia. It is of special advantage in osteoporotic bone, where the anatomical design supports the reduction and allows percutaneous application. Indications are extra- and intra-articular fractures of the distal tibia (43 A1 to A3 and C1 to C3), especially with osteoporotic bone and/or with injury to the overlying soft tissues. The Distal Tibia Plate is available in Stainless Steel and Titanium, they are fully compatible with all 3.5 conventional screws, with the 3.5 Locking Compression Plate System and with the Calcaneus Locking Plate Set.
89y -f- accident 07/01, strong Osteoporosis
