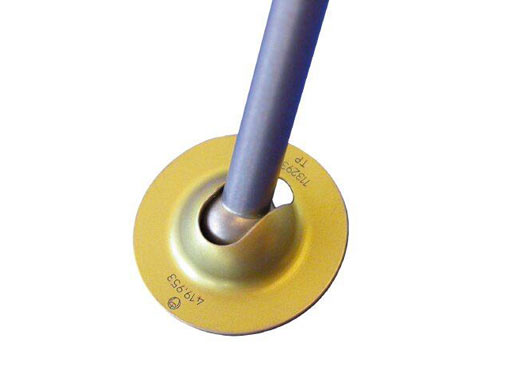

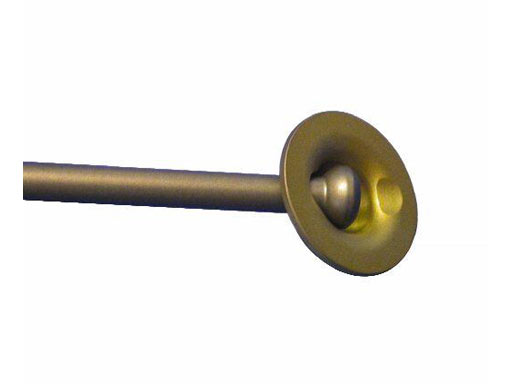

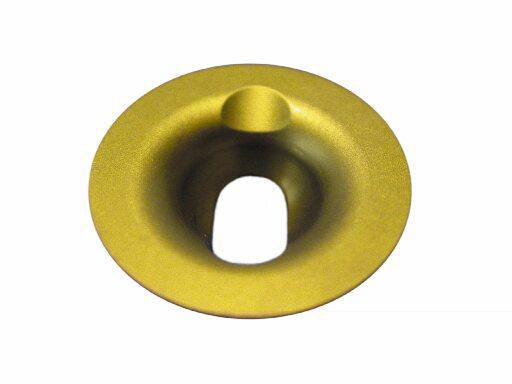

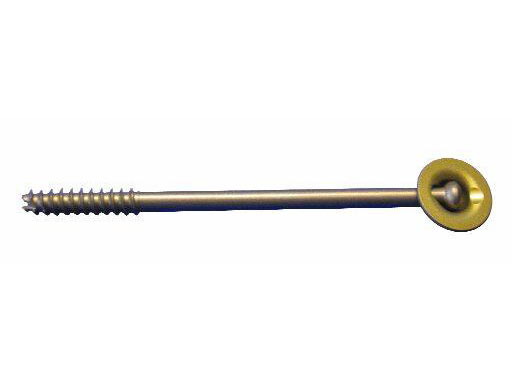

The Spherical Washer is indicated for screw arthrodesis of the ankle joint especially in cases of osteoporotic bones. It enables compression in combination with Cannulated Screws 6.5, 7.0 and 7.3 mm being achieved. The Spherical Washer allows insertion of the screw in an angel of 070. The head of the screw countersinks level with the bony surface and, through its design, distributes the load widely across the thin cortical surface. Therefore, it is especially useful in osteoporotic bone. The Spherical Washer is available in a small and a large size, each in Stainless Steel or TiCp.
Hazards and labeling
Due to varying countries’ legal and regulatory approval requirements, consult the appropriate local product labeling for approved intended use of the products described on this website. All devices on this website are approved by the AO Technical Commission. For logistical reasons, these devices may not be available in all countries worldwide at the date of publication.
