Broad LCP 5.5

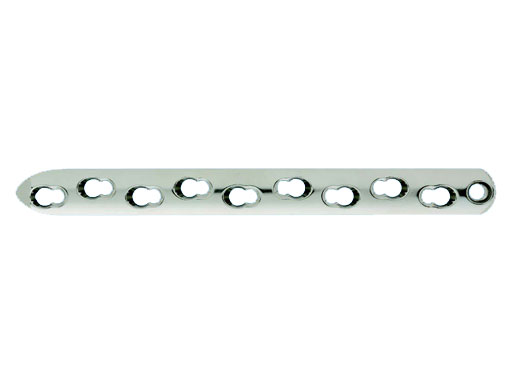

Fig 1: 10-hole broad LCP 5.5 The broad LCP 5.5 is indicated for treatment of fractures and joint arthrodeses in large animals, such as equine and bovine patients. The plates have a width of 17.5 mm and a thickness of 6 mm and are specifically designed to accommodate the extreme weight of adult large animals and enable immediate weight bearing postoperatively.
The plates feature a centrally located stacked combination hole at one end of the plate, for use in treating metaphyseal fractures. The plates are tapered at the other end to facilitate minimally invasive placement. Limited contact undercuts allow smoother plate contouring. It is preferred to provide good bone-plate contact, achieved through the initial insertion of cortex screws at strategic locations or the use of the push-pull device.
The plates are available in sizes of 1018 holes, made out of 316L stainless steel, and are part of the large fragment instrument and implant set.
A 14-year-old Trakehner mare sustained a luxation of the proximal intertarsal joint (calcaneus and talus are displaced palmarly).
(Case provided by Alan Ruggles, Lexington Kentucky, USA)
Fig 2ab: Lateromedial and oblique x-rays.
Fig 3: After reduction of the luxation, a 14-hole broad LCP 5.5 was applied to the plantar aspect of the calcaneus and MtIV.
Fig 4ab: Lateromedial and dorsopalmar x-rays of the repair, depicting the LCP 5.5 in place.
Fig 5: The mare in its box stall with the fiberglass cast in place. Presently the mare is out of the cast at home 8 weeks postoperatively, doing very well. Hazards and labeling
