MAXFRAME AUTOSTRUT

Theodor F. Slongo, J. Spence Reid

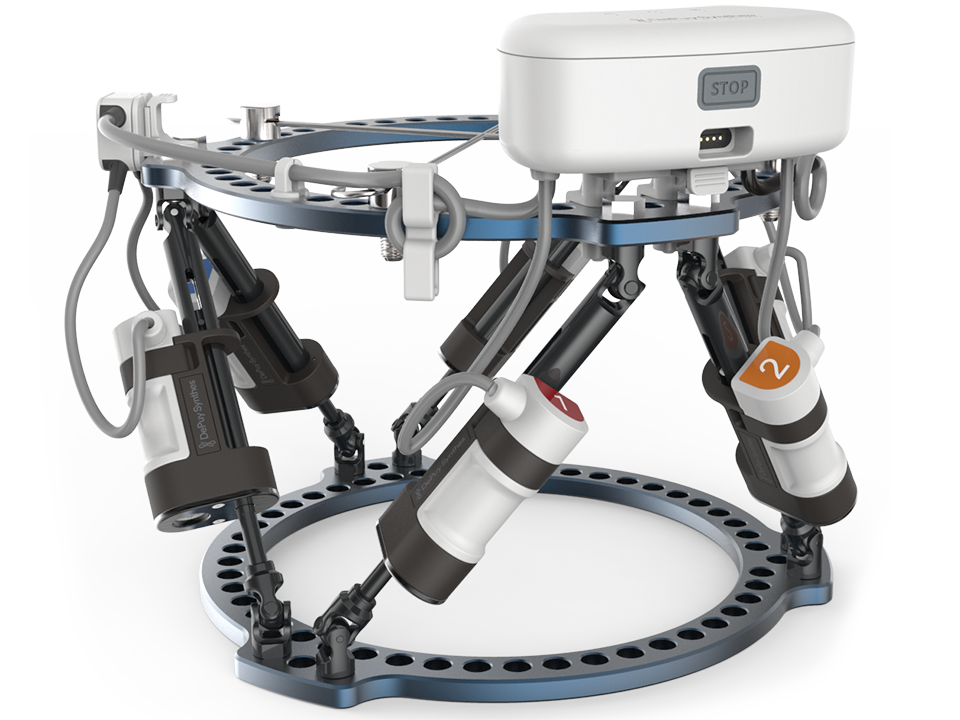

MAXFRAME AUTOSTRUT™ Multi-Axial Correction System is a first-of-its-kind fully automated hexapod ring-fixation system. It provides a solution to the drawbacks of hexapod external ring-fixation treatment by automating the strut adjustment process. Patients no longer need to manipulate the struts, leading to a superior experience throughout the treatment, and reducing the risk of negative clinical outcomes caused by unintended strut adjustments.

It further enables smaller, more frequent actuations, up to 20 times per day. This may be better for the surrounding soft tissue, reduce pain, and improve the quality of the bone regenerate vs. larger and less frequent strut adjustments.

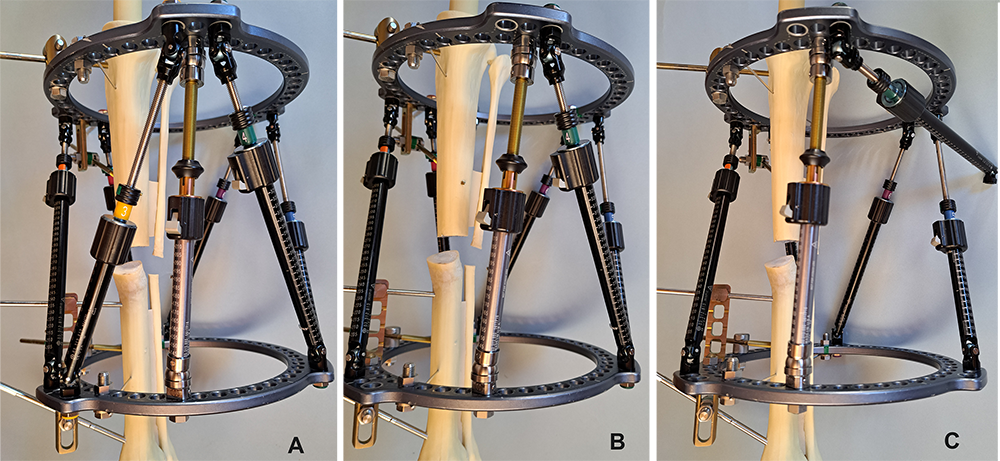

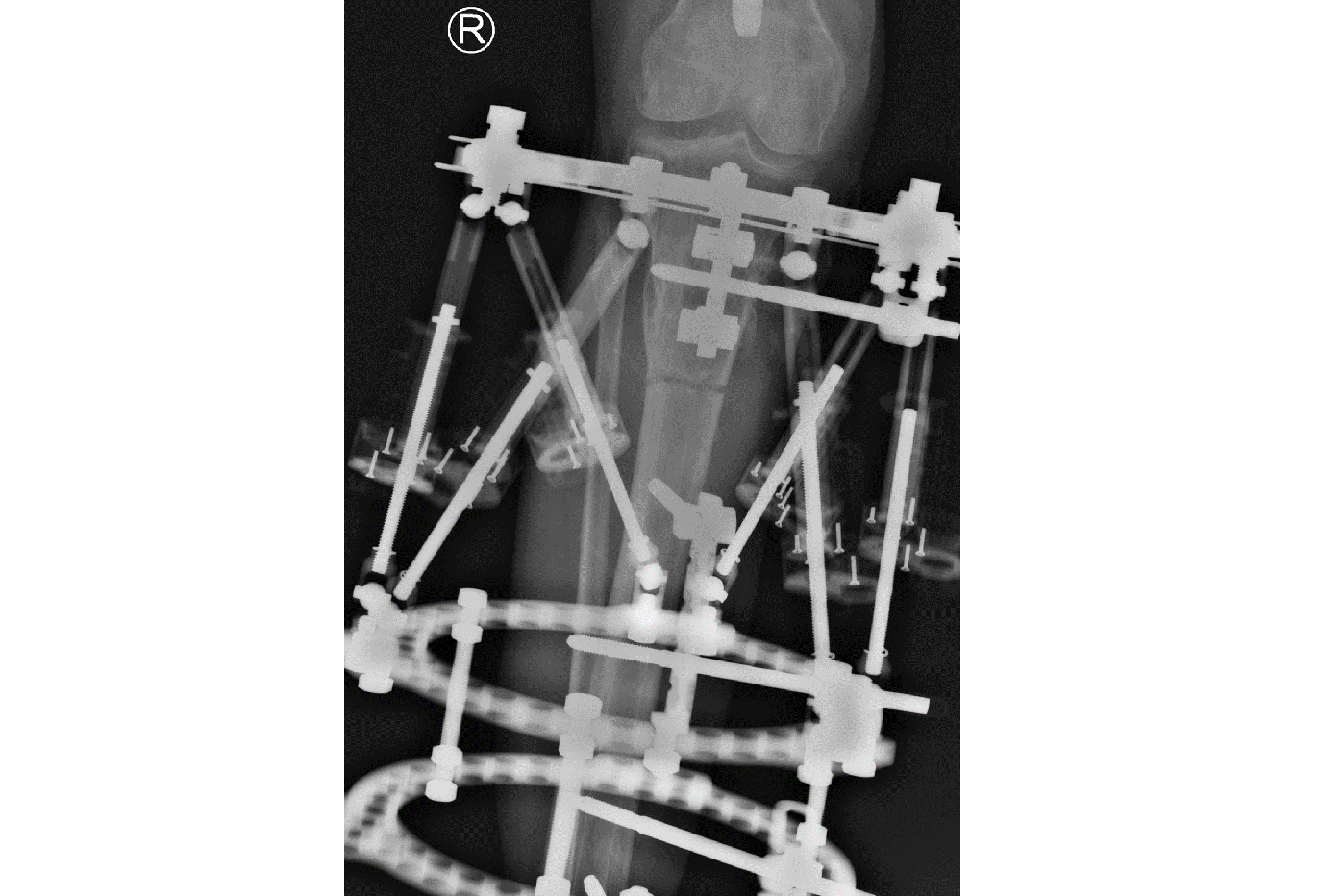

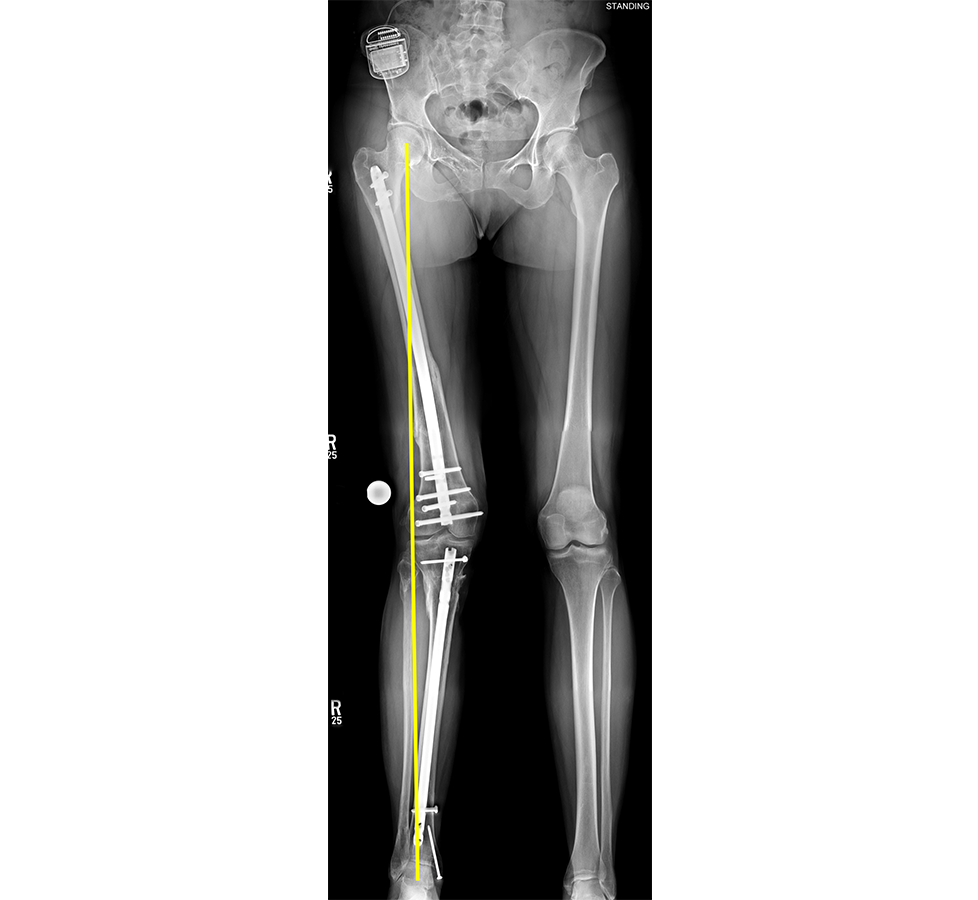

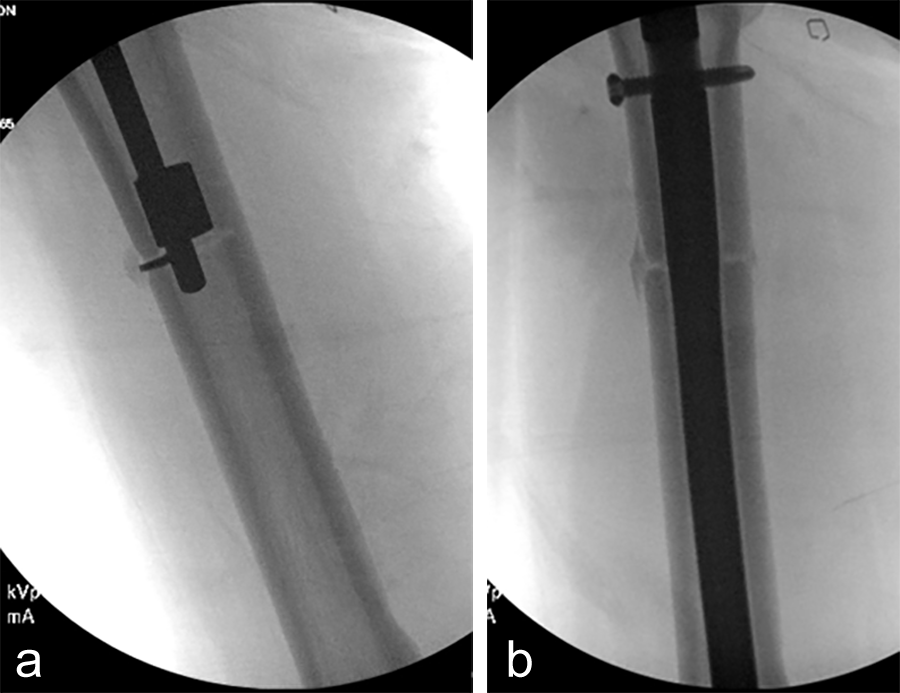

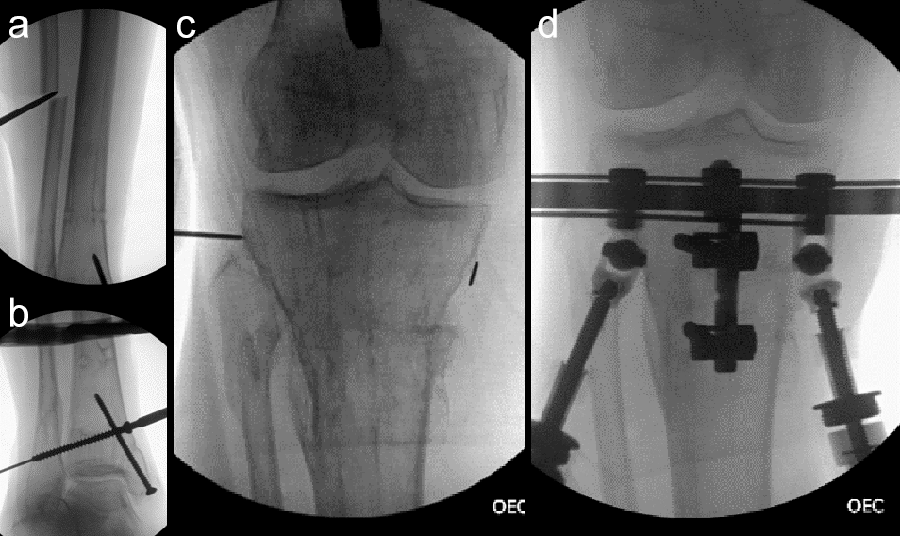

The multiaxial correction system MAXFRAME™ has now firmly established itself as an integral part in the treatment of any bone deformity, be it posttraumatic, infectious, or congenital in origin. The implementation of new hardware components, such as the previously presented linear struts, have again increased the versatility and stability and made the application simpler. The temporary use of the polyaxial struts is particularly helpful in the case of a strut change, as they guarantee high stability while performing a strut change and are easy to install (Fig 2).

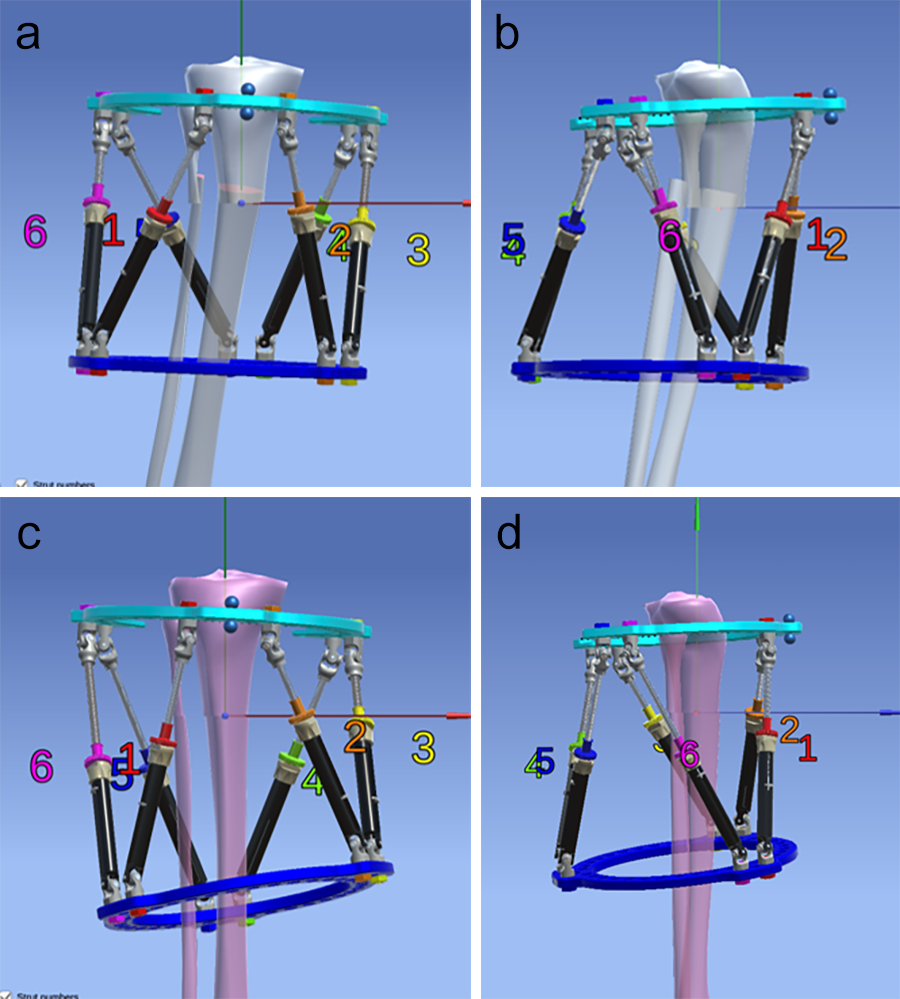

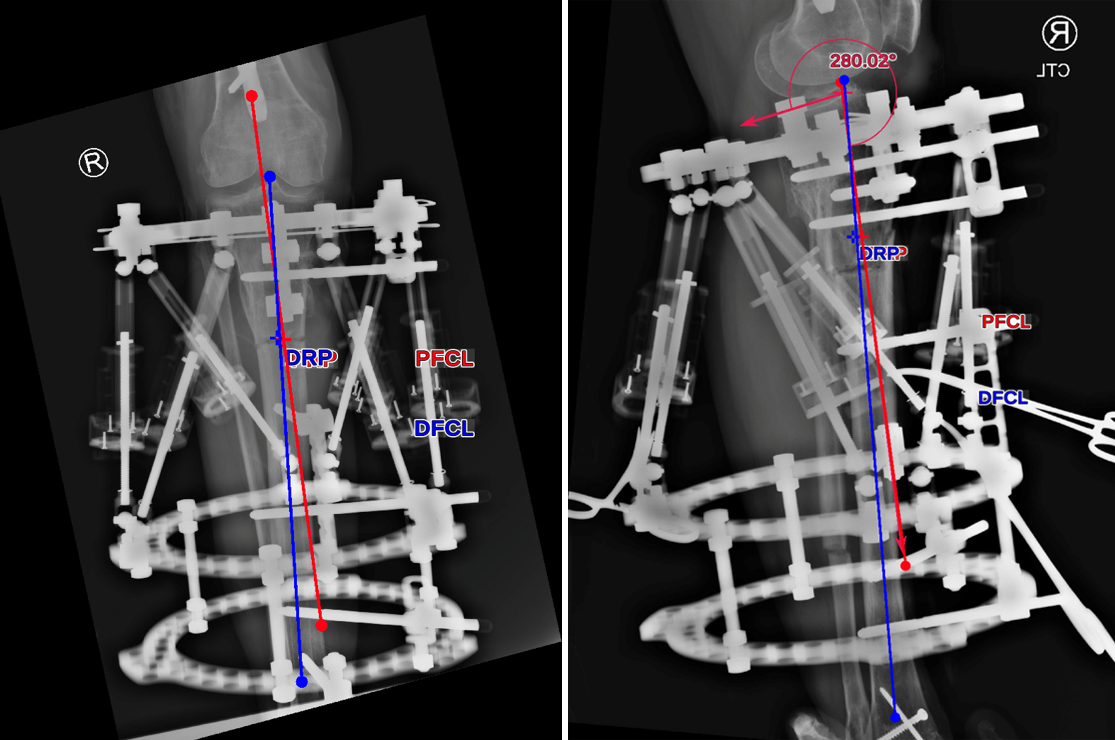

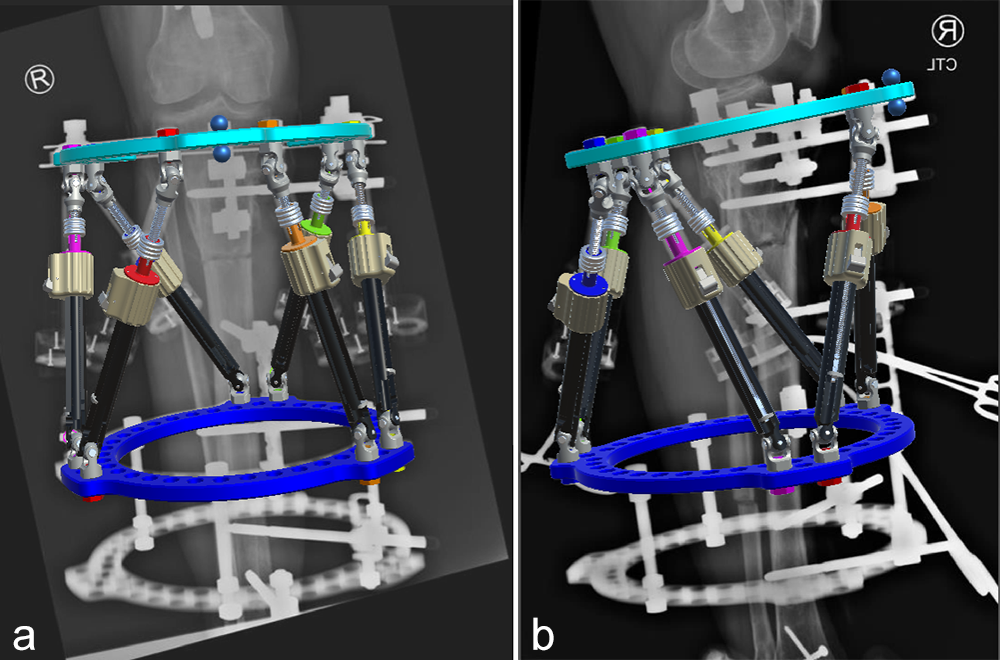

An update was also carried out on the software side, seamlessly compatible with previously created treatment plans and allowing direct transfer to the new software. The current web-based user interface can be accessed on https://www.maxframe3dii.com.

The new software version addresses and integrates the innovative new hardware components MAXFRAME AUTOSTRUT. It enables full automation of strut adjustments through motorized struts and provides a solution to various drawbacks of a traditional hexapod external ring-fixation treatment.


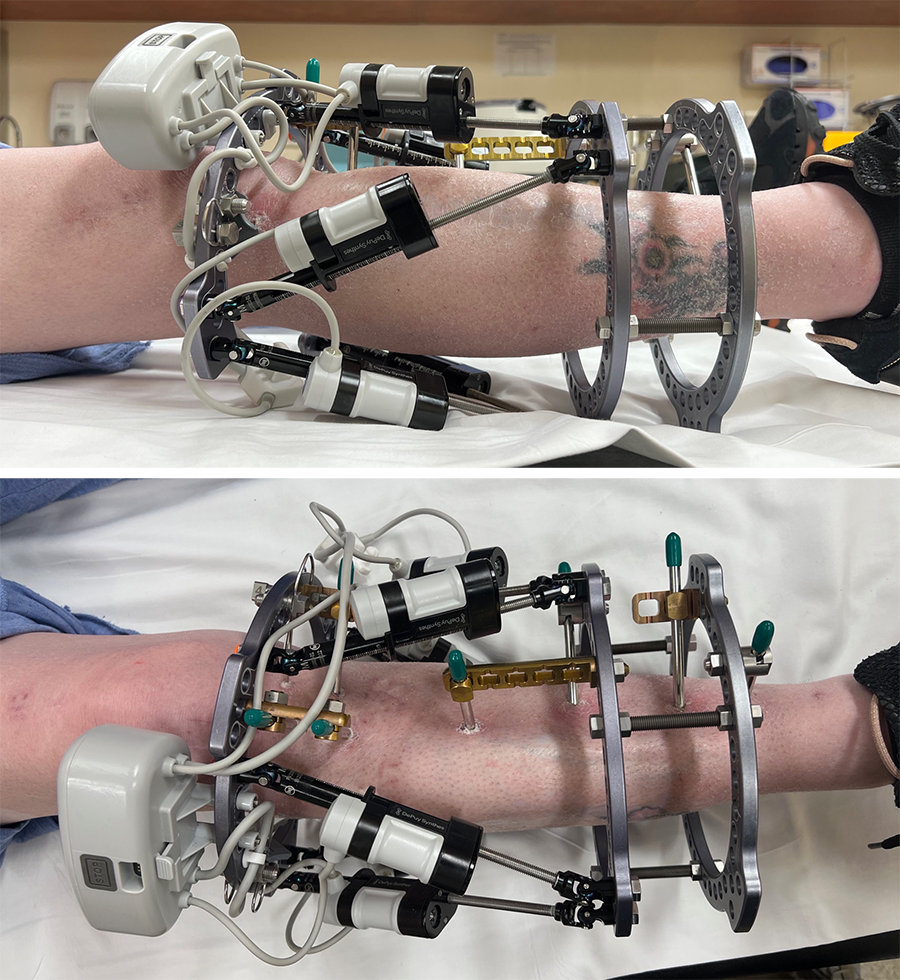

MAXFRAME AUTOSTRUT allows more frequent actuations and higher distraction rates, which may improve callus formation. Simultaneously, it takes into consideration the surrounding soft tissue and nerves, which experience a gentler distraction process when using MAXFRAME AUTOSTRUT vs manually operated struts. Patient discomfort and pain may be also reduced using a larger number of adjustments per day with smaller actuation steps. Currently, up to 20 steps per day are possible. Closed nonunion treatment particularly benefits from this increase in cycles per day while at the same time not increasing demands on manipulations executed by the patient. The system actually operates completely autonomously and fully automated, not even requiring recharging throughout a treatment.

However, it has always been a preference for surgeons and patients to not concern about strut adjustments, especially during the night. This is achieved with MAXFRAME AUTOSTRUT. Automated strut adjustments may further reduce the risk of negative clinical outcomes caused by unintended or wrong manipulation.

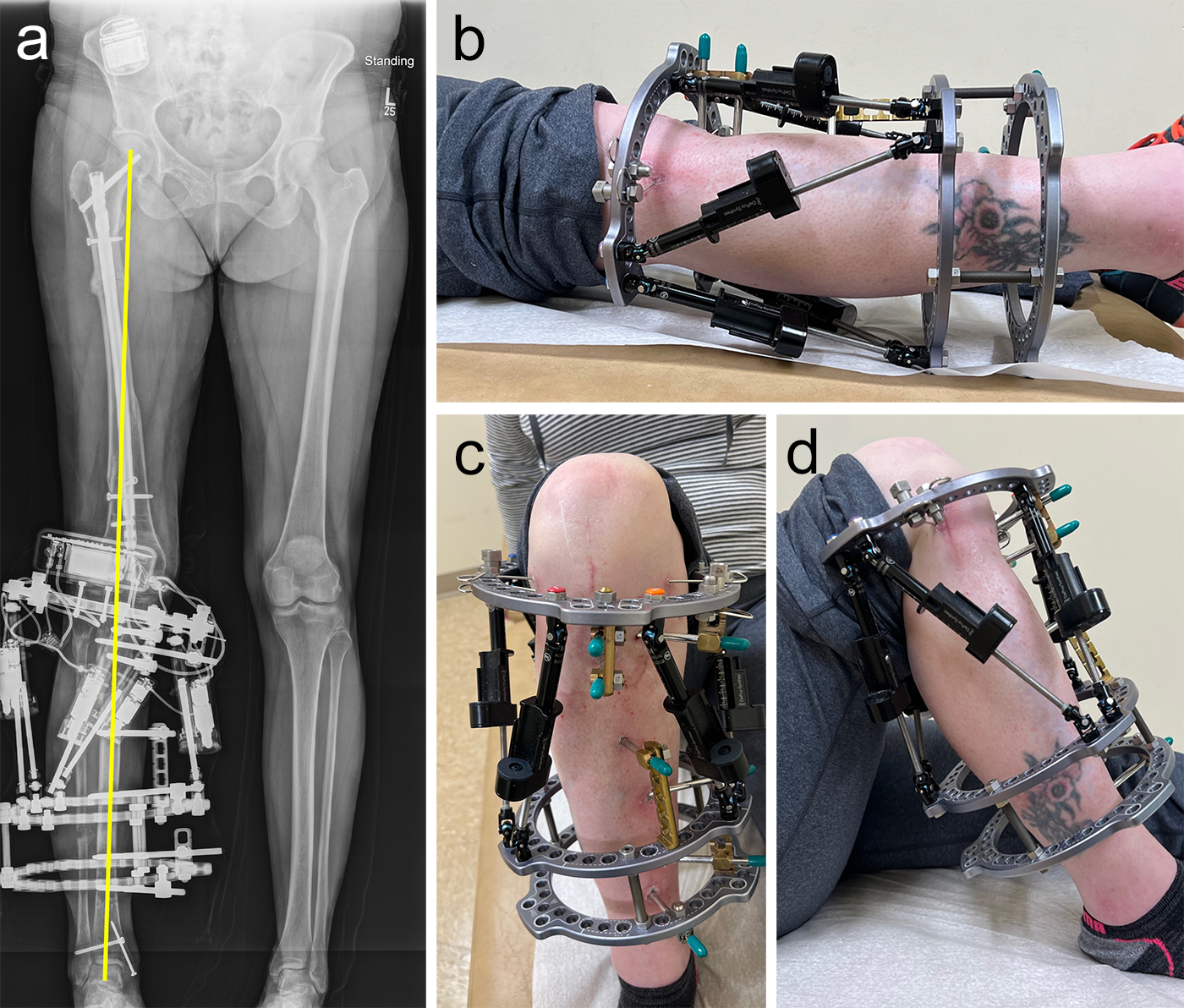

MAXFRAME AUTOSTRUT may additionally allow surgeons to evaluate the progressing stability during the bone-healing phase. Consecutively, it is possible to better estimate the load-bearing capacity of the bone at a certain stage of treatment, and potentially allow an earlier removal of the hexapod frame.

The original MAXFRAME hexapod system with the existing software is fully compatible with MAXFRAME AUTOSTRUT.

Specific features and benefits in detail

MAXFRAME AUTOSTRUT System consists of both hardware and software components as follows:

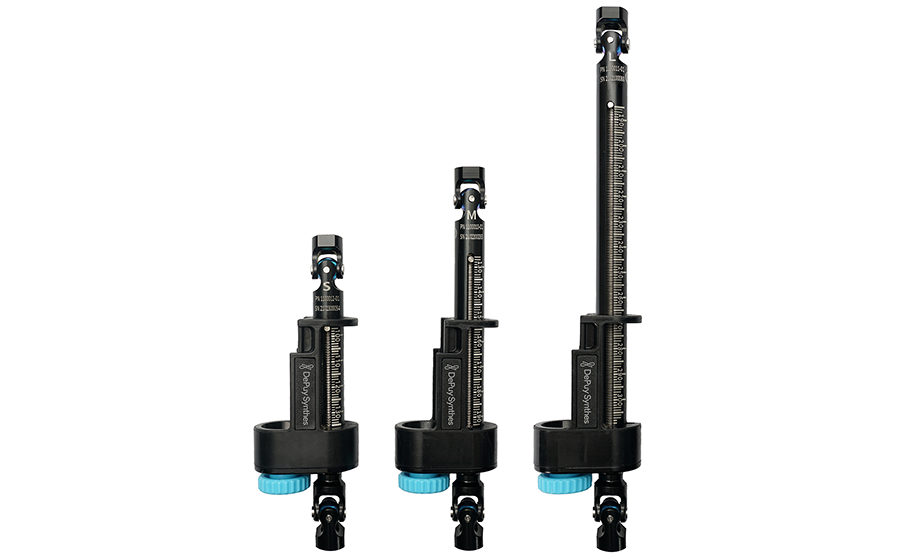

  • Hexapod Struts available in three sizes: short, medium, long (Fig 3)

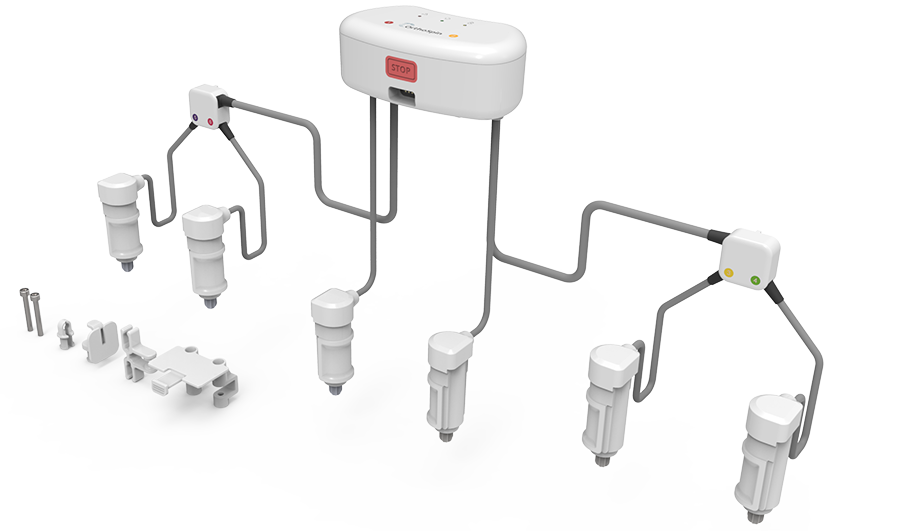

  • Automated Hexapod Control System Kit. Control system consists of control unit with a wired connection to six motorized struts (Fig 4)

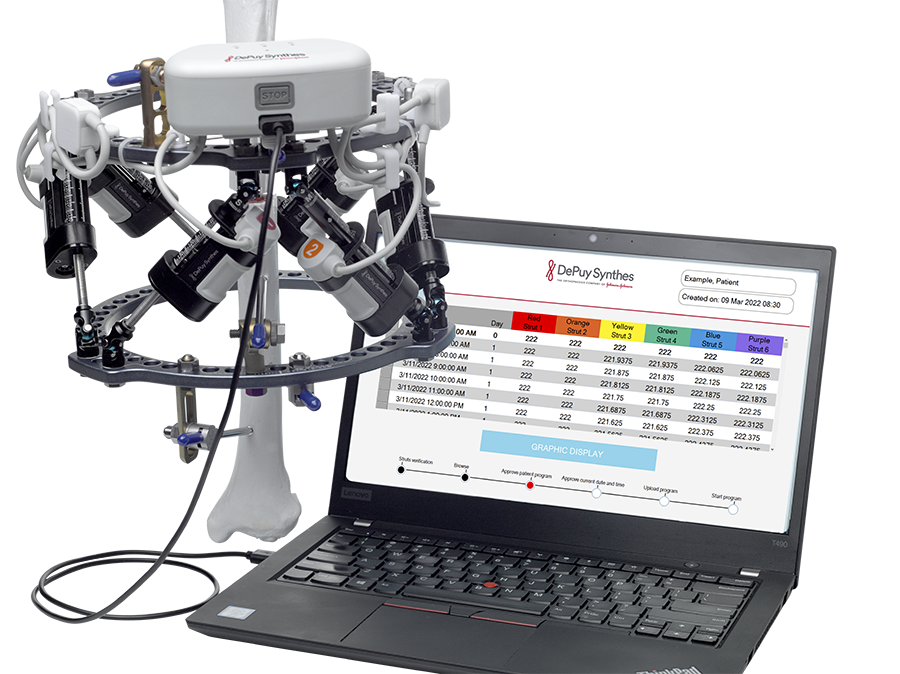

  • Software allowing physicians to download the treatment plan to the device, chart patient progress and, if required, adjusting the treatment plan and schedule (Fig 5)
  • Accessories


Main indications

A. According to the disease/problem:

  • Bone transport
  • Lengthening
  • Rotational corrections
  • Multiaxial corrections
  • Nonunions (cycle treatment)



B. Conforming to the patient ability:

  • Patients with limited manual ability
  • Elderly patients
  • Non- or only partially compliant patients
  • Children

Operating system and computer hardware

MAXFRAME AUTOSTRUT Software is provided on DPS workstations - the surgeon does not need to understand the operating system. There are some requirements for MAXFRAME 3D II.

For more detailed information and the physician user manual, refer to https://www.orthospin.com/
