Variable Angle Locking Hand System

Douglas Campbell, Thomas Fischer

The new VA_LCP Modular Hand System represents true innovation in fracture fixation.

The AOTK approved Variable Angle Locking Hand System is the next generation of small implants for the hand consisting of plates that are anatomic, both fracture and procedure-specific and available in stainless steel and titanium. The system was designed to address clinical challenges faced in the current fixation of fractures and osteotomies and represents a complete overhaul of the LCP Compact Hand System. The Variable Angle Locking Hand System offers a solution for fracture fixation, arthrodesis, non-unions and the reconstruction of small bones and small bone fragments particularly in adults with osteopenic bone. The system also offers instrumentation to aid in fracture reduction, provisional fixation, implant adaptation and construct creation.

Details
Clinical Cases
Videos
Disclaimer

The previously approved Mini Fragment and Compact Hand System standard plates were designed to meet the needs of small bone fixation. The evolution of such internal fixation in the hand to now include variable angle technology (Fig 1) provides a perfect display of a variety of fixed angle devices that are more anatomically adapted with a lower profile design to accommodate the gliding structures of periarticular zones of the hand. The volume of implant beneath the extensor apparatus has been reduced both through plate design and the inclusion of smaller dimension implants (1.3 mm system).

The only fixed angle devices available in earlier systems were blade plate designs. In the new Variable Angle Locking Hand System, there exist a greater choice of implants which enable the application of axial stability and fixed-angle constructs in challenging fractures. Anatomically preformed plates also result in less bulk and a lower need for plate adaptation (Fig 2). A greater selection of fixed angle implants will allow for a wider range of application in osteopenic bone.

For reconstruction applications, a variety of implants that provide precise rotational adjustment have been added. Small rotational deformities of the digits are common and have a greater functional impact than other long bone deformities. These implants provide fine adjustment capabilities. Integration of variable angle locking technology (VA-LCP) into the 1.5 mm and 2.0 mm systems allow for improved placement of screws in metaphyseal bone. Safer and more accurate screw placement in periarticular and juxta-articular positions is realized with the VA-LCP (Fig 3).

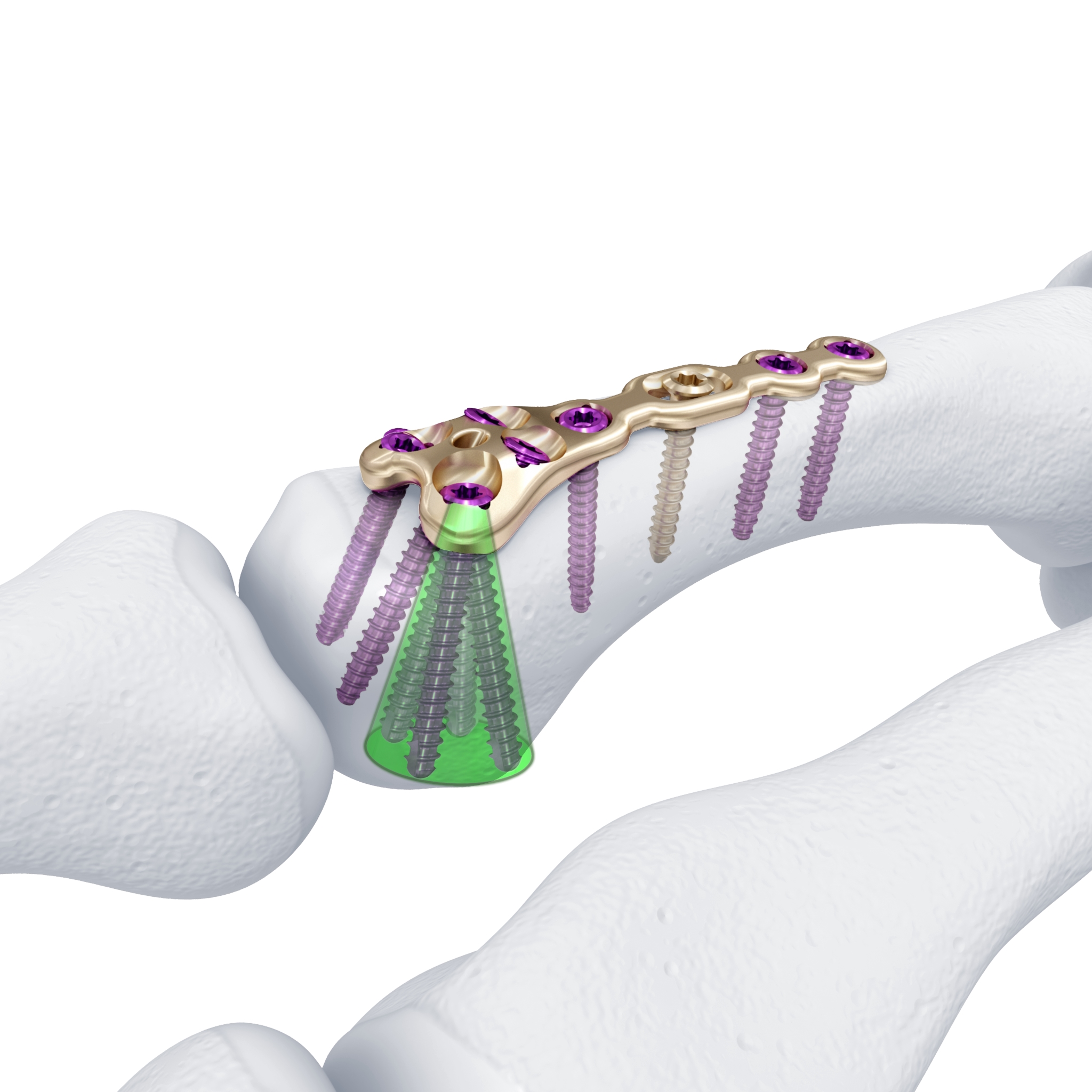

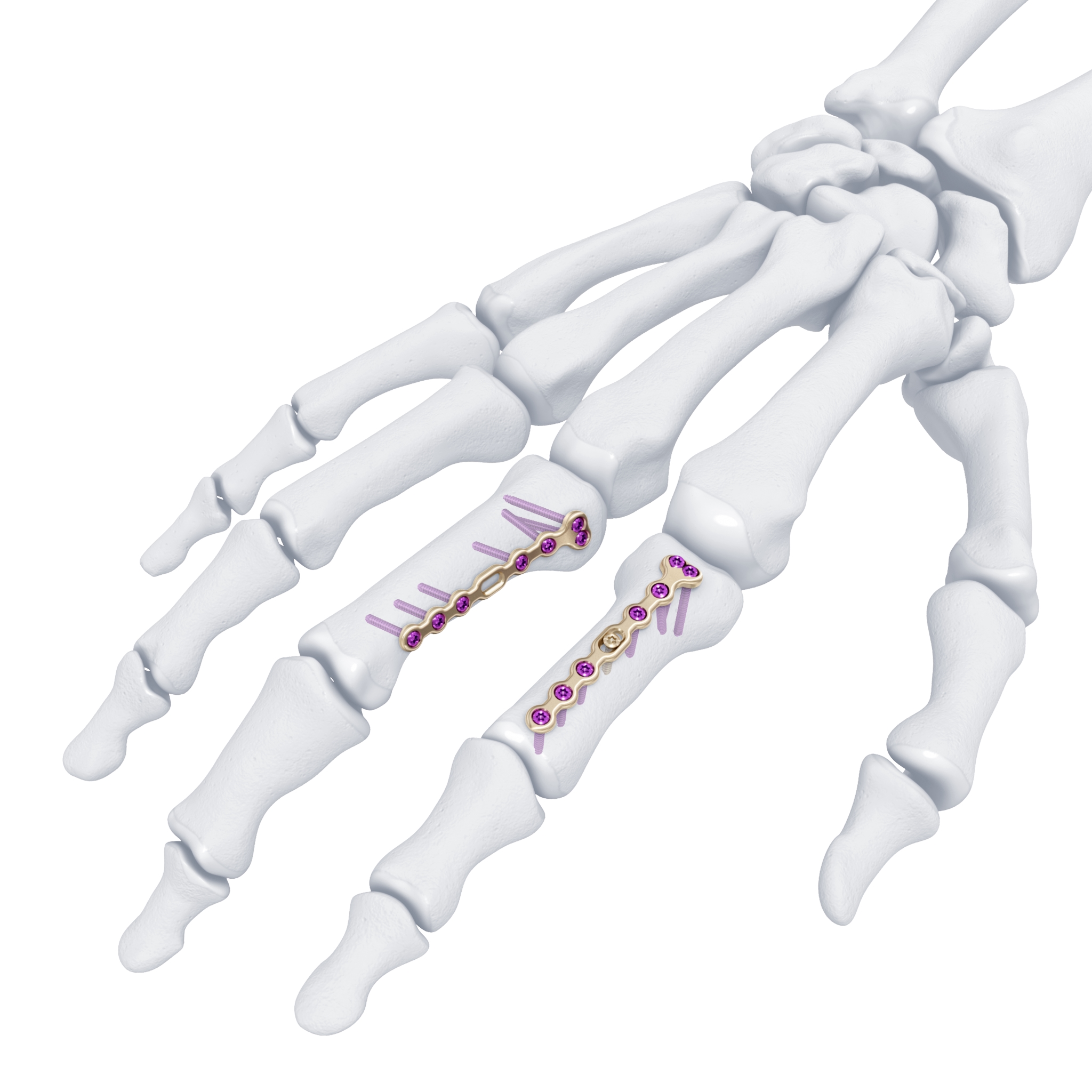

Fig 1: The Variable Angle locking hole provides freedom of screw placement within a 30 cone.

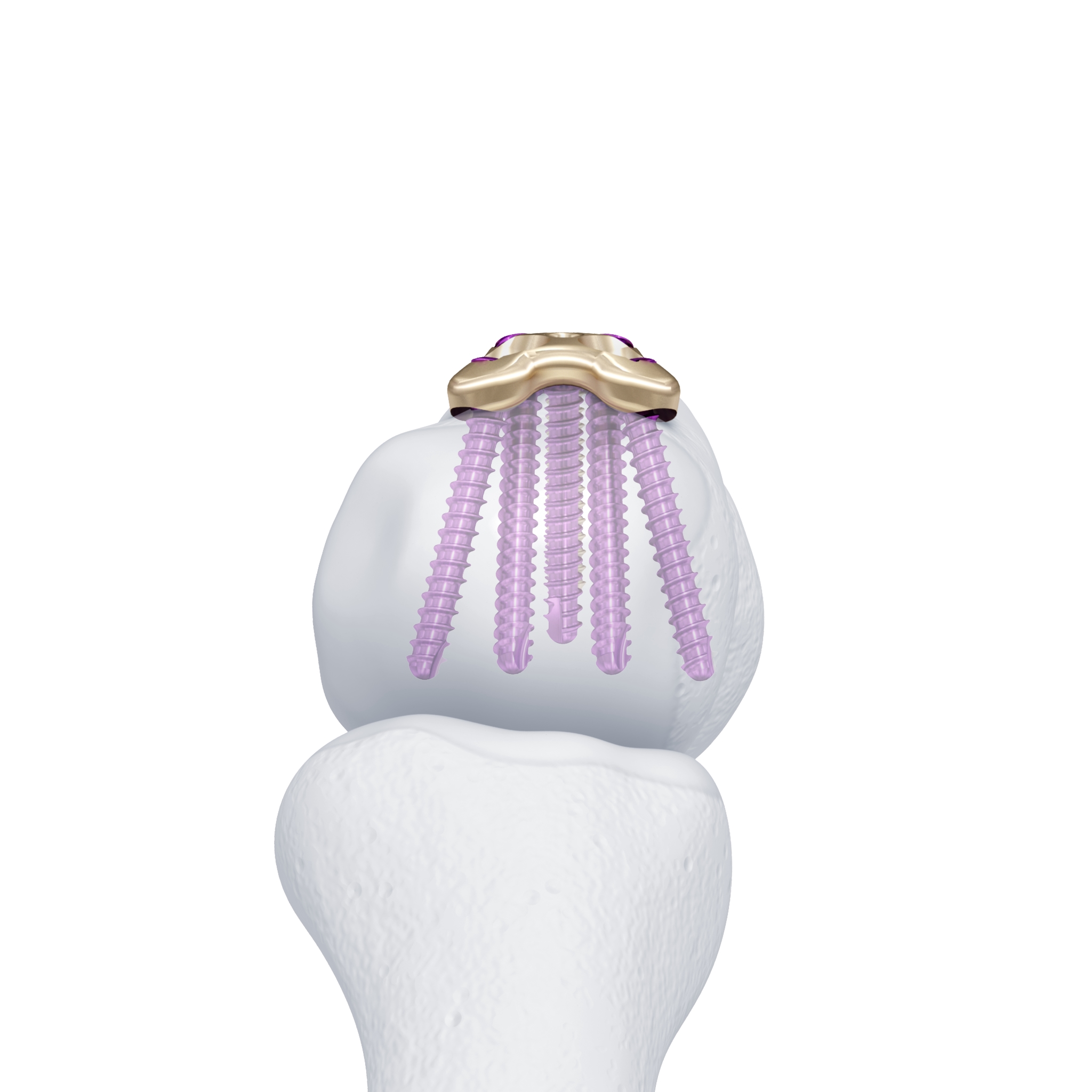

Fig 2 Low profile, pre-anatomically pre-formed plates

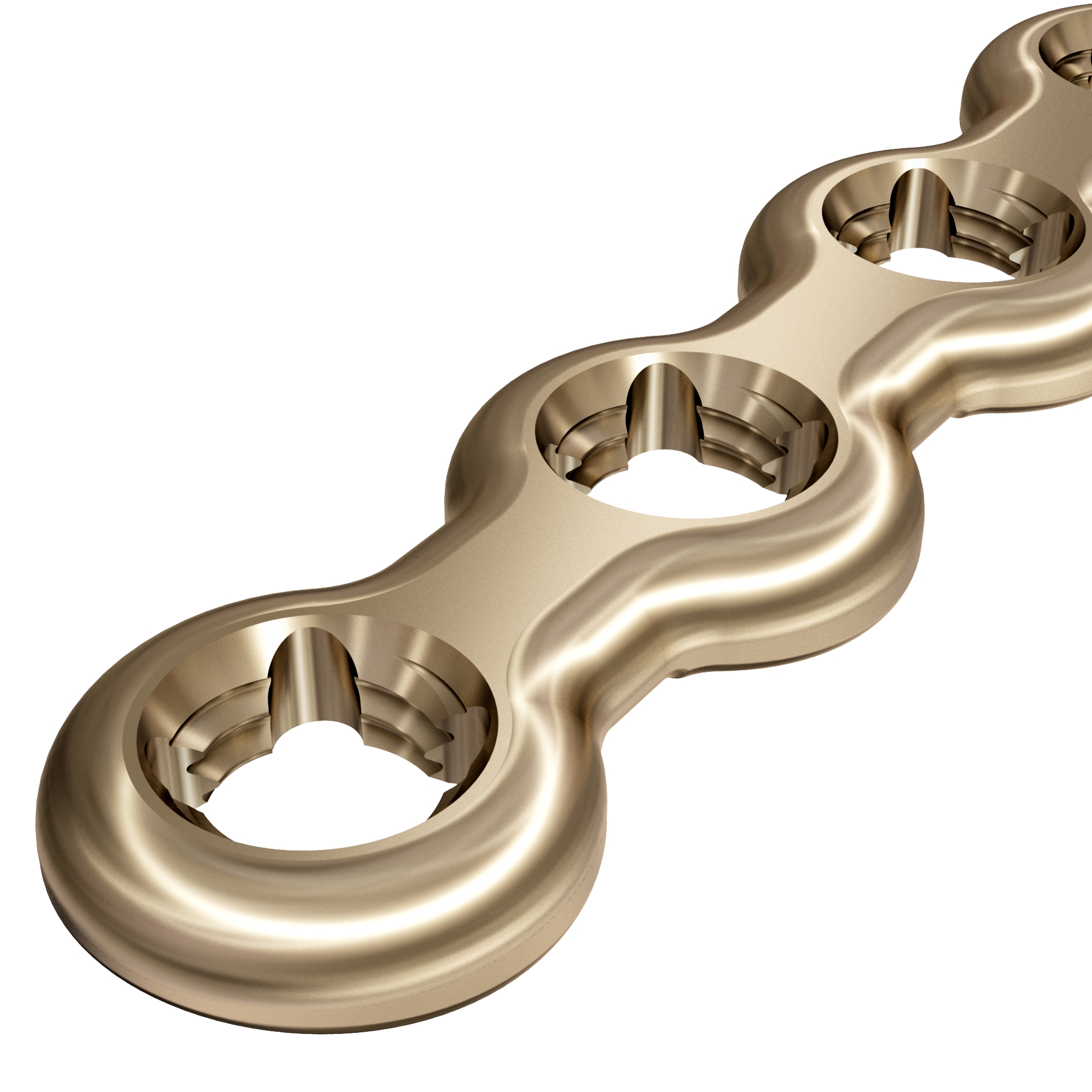

Fig 3 Locking holes enable the placement of screws at either a nominal or variable angle.

Not only has the Variable Angle Locking Hand system delivered a significant advancement in implant development. The technology behind the instrumentation has also been advanced to overcome specific problems such as screwdriver retention (Fig 4), plate contouring and cutting and fracture reduction (Fig 5). The system includes improvements in the following areas:

Provisional fixation
Plate adaptation implant cutting and bending, better accuracy and surface/contour retention
Refined bone preparation.

A comprehensive revitalization of the system was undertaken to provide implants that improved upon the teaching principles of the AO. Devices and designs were evaluated and improved to achieve stable fixation, anatomic reduction, accommodation of soft tissues and early functional aftercare. The Variable Angle Locking Hand System contains implants that extend the possibilities of stable fixation where none could be provided before (osteoporotic bone, small fragments).

This new system was developed to include the best practices in fracture care and to present a system that revolutionized both implant design and instrumentation in a complete overhaul of previous designs. Through a successful collaboration with the Hand Expert Group and numerous surgeons including AO faculty, the goal of creating a system that meets current daily clinical needs was achieved.

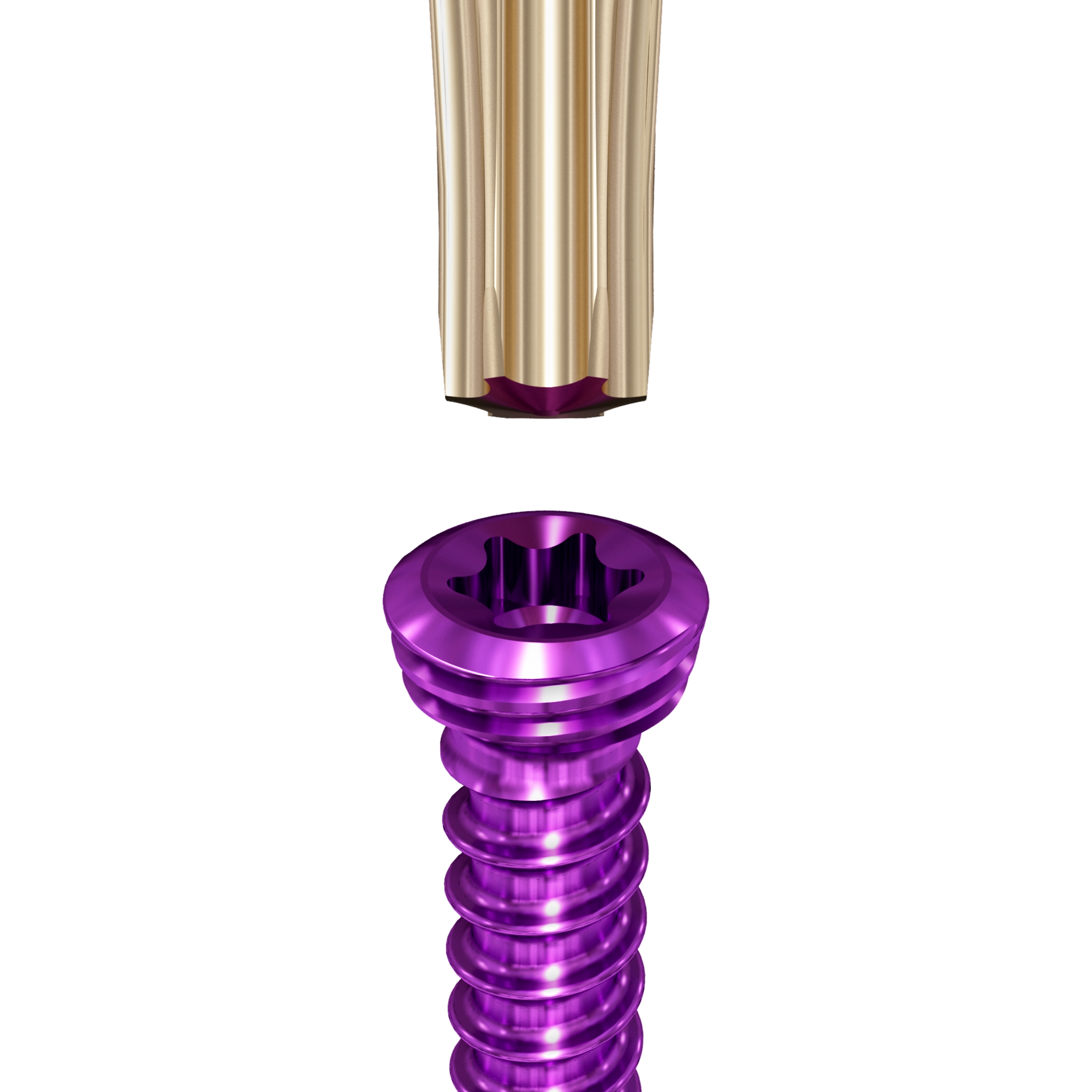

Fig 4 Self-retaining screwdriver.

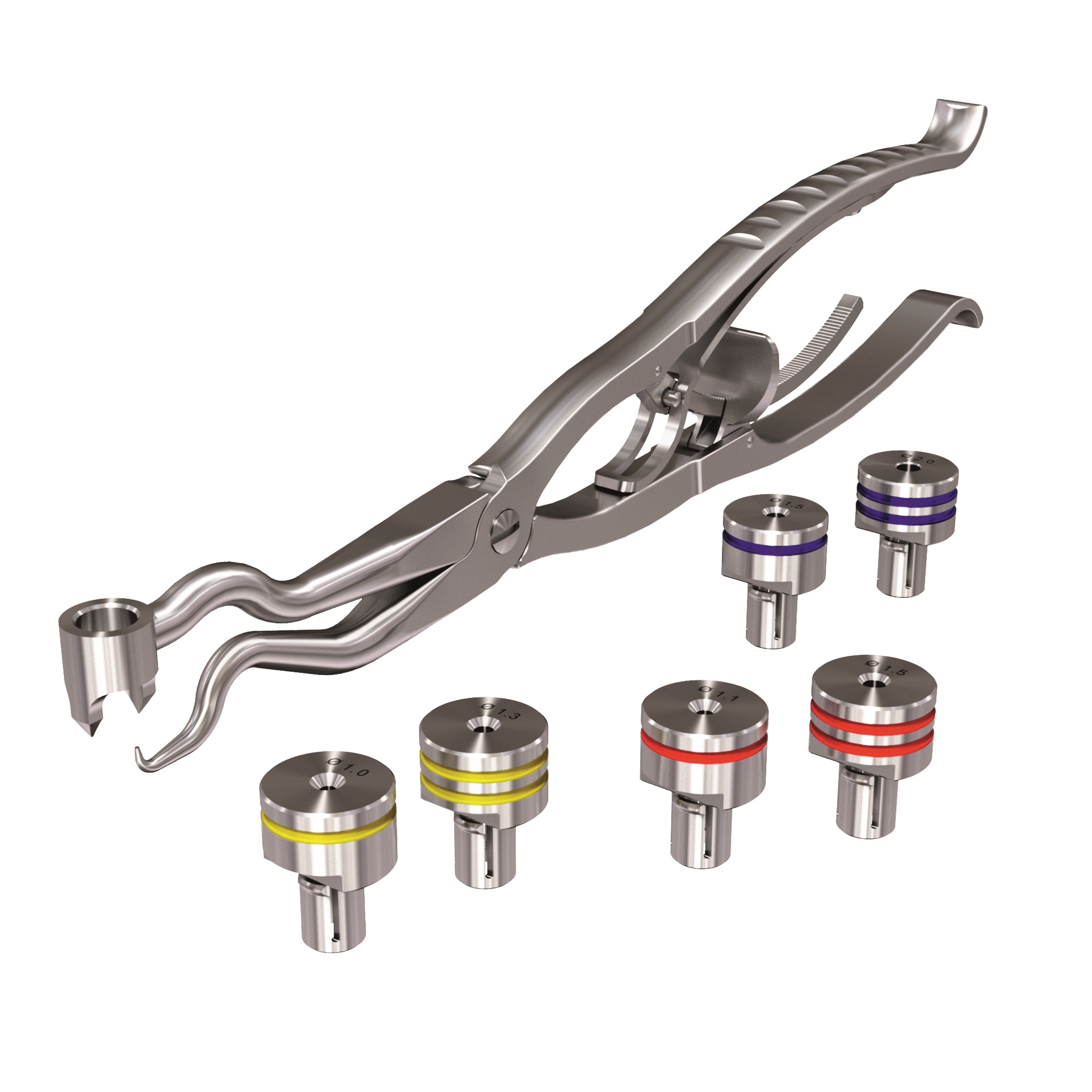

Fig 5 Forceps that aid in fracture reduction and lag screw application.

Cases provided by Esther Vögelin, Bern, Switzerland

Case 1:

A 64-year-old male suffered a multi-fragmentary fracture of his right thumb metacarpal (Fig 1). An adapted 12-hole strut plate from the variable angle locking hand system was the implant of choice for fixation (Figs 2 - 4).

The strut plate provided good stability in a comminuted extraaricular fracture pattern and enables immediate mobilization. Bone callus formation was not witnessed during the healing process.

Fig 1a Pre-operative images.

Fig 1b Pre-operative images.

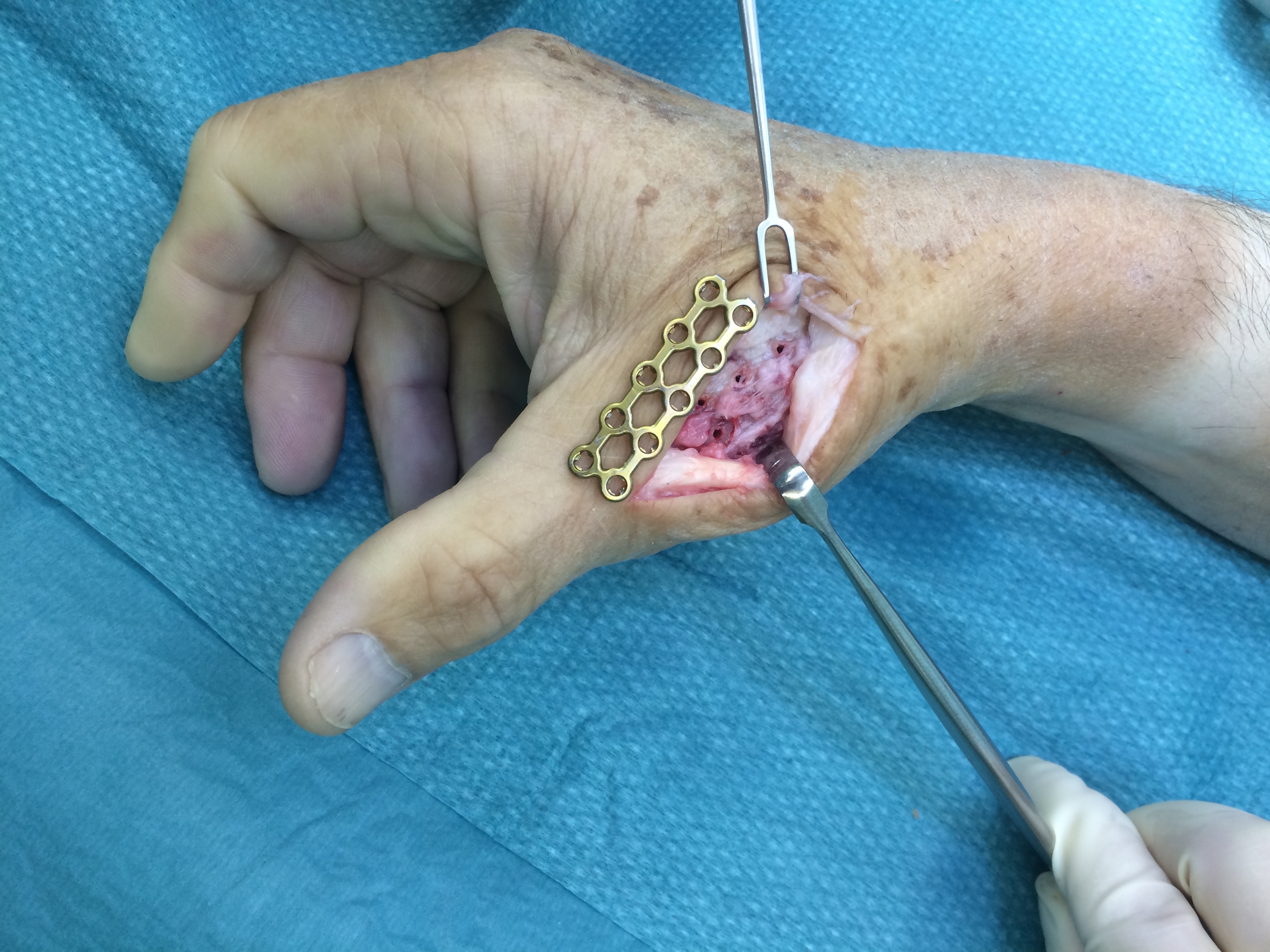

Fig 2a Intra-operative images.

Fig 2b Intra-operative images.

Fig 3a-c: The post-operative images at the 5-month follow-up revealed secondary bone healing.

Fig 4a: Plate removal at the 5-month follow-up.

Fig 4b: Plate removal at the 5-month follow-up.

Case 2:

A 20-year-old male suffered a complex multi-digit injury of the right hand requiring revascularization and stabilization of both proximal phalanx and PIP joint fractures (Figs 5 - 8). Multiple plates, including the rotation correction plate from the 1.5 module of the VA Locking Hand System were used for fixation. The Variable Angle Locking system is ideal when only two screws, either proximal or distal, are able to be inserted due to space limitation.

One major advantage of variable angle technology in very distal phalangeal fractures is the ability to be extremely flexible with a wide range of fixation options. Freedom of implant placement assists early mobilization, vital in these complex fractures with associated soft-tissue trauma.

Fig 5a Pre-operative images.

Fig 5b Pre-operative images.

Fig 5c Pre-operative images.

Fig 6a Intra-operative imagery of stabilization achieved using Rotation Correction and Straight Plates.

Fig 6b Intra-operative imagery of stabilization achieved using Rotation Correction and Straight Plates.

Fig 7a Imagery two months post-operative.

Fig 7b Imagery two months post-operative.

Fig 8a Radiographs two months post-operative.

Fig 8b Radiographs two months post-operative.

Fig 8c Radiographs two months post-operative.

Case 3:

A 60-year-old male patient required an arthrodesis of the thumb carpometacarpal (CMC) joint after an implant arthroplasty in conjunction with the implantation of cortico-cancellous bone graft following a proximal row carpectomy and a previous arthrodesis between trapezium-trapezoid and the 2nd CMC joint (Fig 9). The first metacarpal dorsal plate from the VA Locking Hand System was selected for the procedure (Figs 10 - 11).

Fig 9 Cortico-cancellous bone graft implantation CMC I following proximal row carpectomy and previous trapezium-trapezoid and 2nd CMC joint arthrodesis.

Fig 10 Intraoperative images of the dorsal plate on the thumb metacarpal.

Fig 11a The 2-month postoperative scans.

Fig 11b The 2-month postoperative scans.

Fig 11c The 2-month postoperative scans.

Introduction to the Variable Angle Modular Hand System

Presented by D. Campbell and T. Fischer on December 7, 2015.
