Norian Drillable

Michiel Verhofstad, Christian Matula

Norian drillable is a synthetic ceramic, injectable, moldable, and biocompatible bone-void filler indicated for tibial plateau, distal radius, calcaneal, and intertrochanteric fractures.

Norian drillable is a calcium-phosphate-based bone-void filler, based on the same ceramic phase as Norian SRS. It has been enhanced with the addition of chopped fibers as a reinforcing phase, and sodium hyaluronate as a flow promoter. The bioabsorbable polymer fibers, which comprise approximately 2% by weight of the cured material, are degraded in the body by hydrolysis, lose their strength in approximately 4 months, and are eliminated over time. The ceramic component is slowly remodeled over a period of years, at a rate depending on the metabolic activity of the host bone. When fully cured, the composition formed closely approximates the mineral phase of bone.

Details
Clinical Cases
Disclaimer

Norian drillable is intended to be placed into bony voids either before or after final fracture fixation. It allows drilling, tapping, and screw placement through the filler at any time even after the setting process is completed ("reduce → fill → fix"). Of course, Norian drillable can also be used after completion of the osteosynthesis in the same way as conventional Norian SRS ("reduce → fix → fill"). Once the material is set, it acts as a temporary medium that provides mechanical support during the healing process. This is of particular relevance in elderly patients with metaphyseal fractures with bone loss, eg, due to impaction. Please note that the screws should not be placed near the edge of the cement as this may cause a fracture of the bone-void filler.

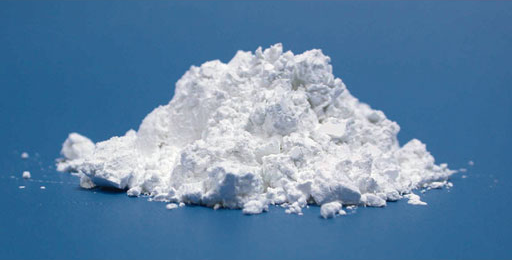

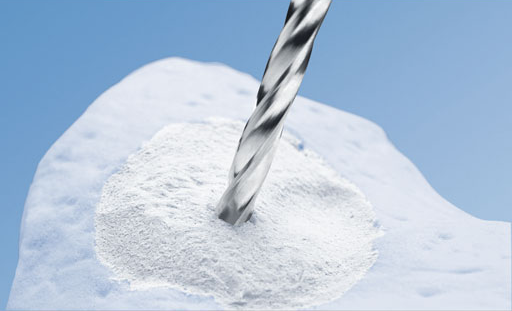

Fig 1 Norian drillable.

Norian drillable can be delivered either as an injectable paste that is mixed with an automatic mixer or as a fast-set putty which is manually mixed with a cup and spatula. Both are available in amounts of 3.5 and 10 cc.

Norian drillable as injectable paste is prepared outside the sterile field with a mechanical rotary mixer and injected via a sterile syringe and needle. After mixing, the material forms a smooth, viscous paste that remains injectable for approximately 5 minutes at 18-23°C / 64-73°F. At body temperature (37°C / 98.6°F), Norian drillable begins to harden after 2 minutes and sets in approximately 10 minutes. If a tourniquet is used, the hardening is delayed, but can be enhanced using warm saline. Norian drillable reaches its ultimate compressive strength in 24 hours.

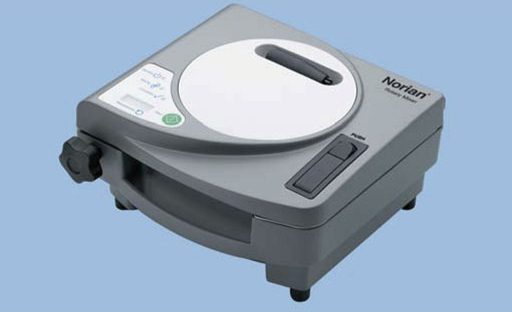

Fig 2 Norian drillable mixer.

Norian drillable as fast-set putty is supplied in two containers: the mixing cup holds sterile powder and the solution syringe holds the liquid mixing solution. The moldable putty is mixed by hand with cup and spatula supplied in the kit within the sterile field and delivered by hand or another instrument. After mixing, the resultant putty material can be manipulated for 2 minutes at 18-23°C / 64-73°F. At body temperature (37°C / 98.6°F), Norian drillable fast-set putty begins to harden after 2 minutes of implantation and sets in approximately 36 minutes. Norian drillable fast-set putty reaches its ultimate compressive strength in 24 hours.

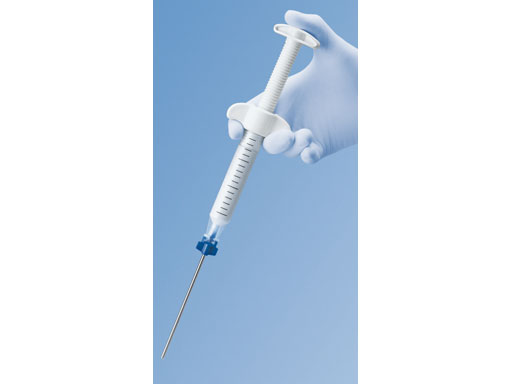

Fig 3 Norian drillable syringe.

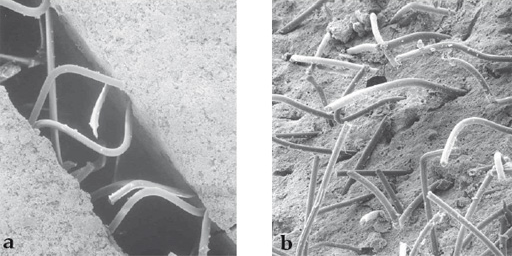

Fig 4ab Fibers.

Case 1: A 70-year-old man sustained a Sanders IIA fracture of his left calcaneus.

(Case provided by Michiel Verhofstad, Tilburg, The Netherlands)

After open reduction a gap was left due to impaction of the osteoporotic metaphyseal bone. To support preliminary maintenance of the primary reduction a block of calcium phosphate was introduced beneath the posterior facet. The rest of the gap was filled with Norian drillable. After hardening plate osteosynthesis was performed. Two screws were placed through the fiber-enhanced calcium phosphate. Weight bearing was started 6 weeks later. After 6 months the fracture was healed without secondary loss of reduction. Note that at that time the degradation of the void filler is visible.

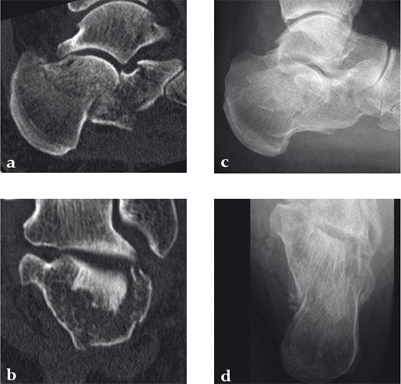

Fig 1ad Preoperative CT scans and x-rays.

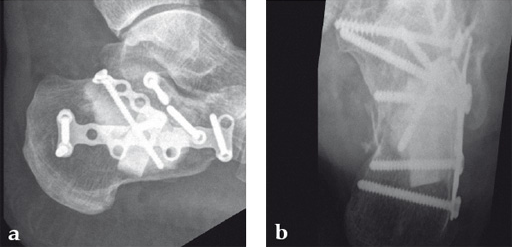

Fig 2ab Immediately postoperative x-rays.

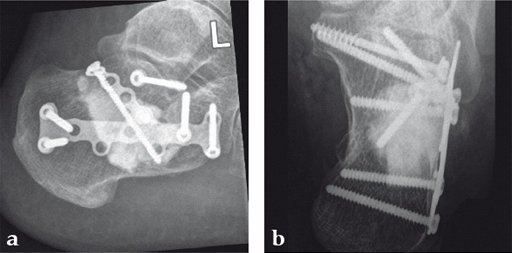

Fig 3ab X-rays 6 weeks postoperatively.

Fig 4ab X-rays 6 months postoperatively.

Fig 5ab Intraoperative image intensification.

Case 2: A 38-year-old man sustained a lateral tibia plateau fracture (Müller AO Classification 41-B.3/Schatzker type II).

(Case provided by Michiel Verhofstad, Tilburg, The Netherlands)

After opening the lateral wedge, the osteochondral fragment was reduced and maintained with two K-wires. A gap beneath this fragment was left. Subsequently, a 3.2 mm hole was drilled in the lateral wedge using an inside-out technique. Then the lateral fragment was reduced. A 3-hole buttress plate, followed by two subchondral compression screws were used for final fracture fixation. Finally, Norian drillable was injected in the gap through the predrilled hole. Weight bearing was started after 6 weeks. At 6 months the fracture had healed anatomically and the patient was complaint-free.

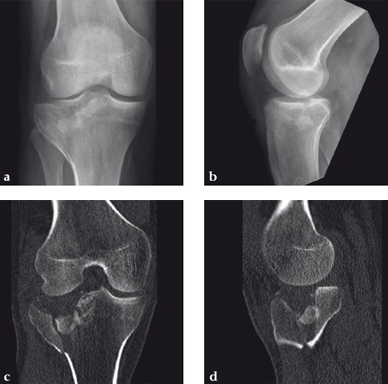

Fig 1a–d Preoperative x-rays and CT scans.

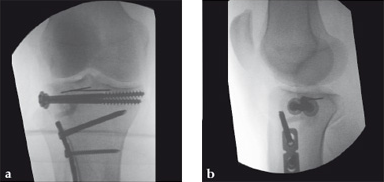

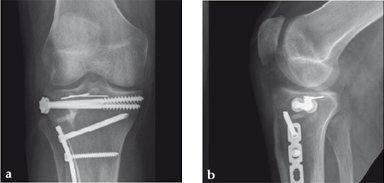

Fig 2 Intraoperative images.

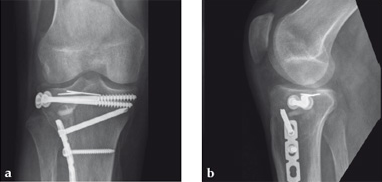

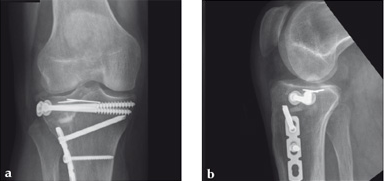

Fig 3 X-rays 6 weeks postoperatively.

Fig 4 X-rays 3 months postoperatively.

Fig 5 X-rays 6 months postoperatively.
