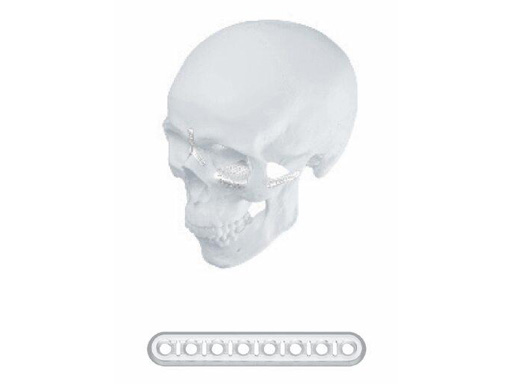

Rapid Resorbable Fixation System
The Rapid Resorbable Fixation System is primarily intended for treatment of pediatric patients suffering from craniosynostosis which causes premature skull fusion, resulting in impeded skull growth, and increased intracranial pressure. The Rapid Resorbable Fixation System can also be used in non-load bearing applications such as maintaining the relative position of and/or containing bony fragments, bone grafts or bone graft substitutes in reconstruction or mandibular areas. The Rapid Resorbable Fixation System consists of a complete line of plates, meshes, sheets, and screws in a faster-resorbing polymer [85:15 poly (L-lactide-co-glycolide)]. The polymer resorbs within approximately twelve months by bulk degradation and hydrolysis without the late inflammatory complications and foreign body responses observed with semi-crystalline structures. The polymer strengths are not affected by radiation therapy. A variety of shapes and sizes is available. Additional shaping to the contours of the anatomy is possible by heating or cutting to the desired shape. The instrumentation, eg, in situ Bender/Cutter of the existing Resorbable Fixation System can be used. The Resorbable Screws come in thread diameters of 1.5, 2.0 and 2.5 mm and lengths of 3.0 to 8.0 mm. The Resorbable Plates offer screw diameters of either 1.5 or 2.0 mm. The plate thickness varies from 0.5, 0.8 to 1.2 mm. They come in the following shapes: straight, adaption, orbital rim, orbital floor, oblique-L, Y, X, strut, and burr-hole cover. The Resorbable Meshes are available in 0.25, 0.5, 0.8, and 1.2 mm thickness, and either square, round, or crescent shape.
Bending Templates for the different plates of the Resorbable Fixation System are now also available in stainless steel. These Bending Templates are much more stable than the existing ones in titanium. They can be bent several times without breaking. The Bending Templates are available for the 1.5 and 2.0 mm Adaption Plate with 8 and 20 holes, 1.5 mm Strut Plate with 20 and 36 holes, 2.0mm Strut Plate with 20 holes, 1.5 and 2.0 mm L- Plate with 10 holes, 1.5 and 2.0 mm Y-Plate with 10 holes, 1.5 mm Double-Y-Plate with 10 holes, 1.5 and 2.0 mm Orbital Plate with 10 holes, and the 1.5/2.0 mm Mesh Plates.

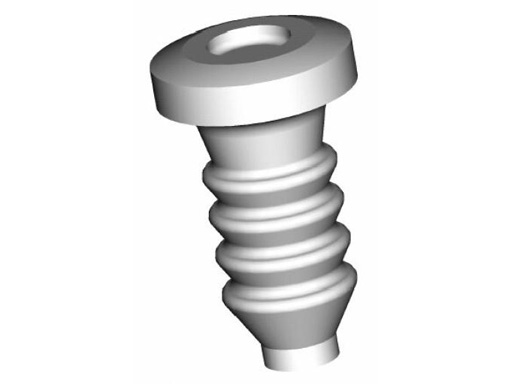

Rapid Resorbable Tack and 1.7 mm Emergency Rapid Resorbable Tack
The Resorbable Tack System was developed to provide surgeons with a means for fast and simple fixation of resorbable plates to the bone. The resorbable tacks feature circumferential ribs which provide interference fit against bone when tacks are press-inserted into predrilled holes. The simple drill and push insertion is a time saving means of 1.5 mm rapid resorbable tack, 6 mm plate fixation. This tack line extension is manufactured from 85:15 poly (L-lactide-co-glycolide) as are all other implants in the rapid resorbable fixation system. It is available as 1.5 mm regular plus 1.7 mm emergency version, and compliments the screw options currently available. The existing instrumentation is utilized.
Hazards and labeling
Due to varying countries’ legal and regulatory approval requirements, consult the appropriate local product labeling for approved intended use of the products described on this website. All devices on this website are approved by the AO Technical Commission. For logistical reasons, these devices may not be available in all countries worldwide at the date of publication.
This work was produced by AO Foundation, Switzerland. All rights reserved by AO Foundation. This publication, including all parts thereof, is legally protected by copyright.
Any use, exploitation or commercialization outside the narrow limits set forth by copyright legislation and the restrictions on use laid out below, without the publisher‘s consent, is illegal and liable to prosecution. This applies in particular to photostat reproduction, copying, scanning or duplication of any kind, translation, preparation of microfilms, electronic data processing, and storage such as making this publication available on Intranet or Internet.
Some of the products, names, instruments, treatments, logos, designs, etc referred to in this publication are also protected by patents, trademarks or by other intellectual property protection laws (eg, “AO” and the AO logo are subject to trademark applications/registrations) even though specific reference to this fact is not always made in the text. Therefore, the appearance of a name, instrument, etc without designation as proprietary is not to be construed as a representation by the publisher that it is in the public domain.
Restrictions on use: The rightful owner of an authorized copy of this work may use it for educational and research purposes only. Single images or illustrations may be copied for research or educational purposes only. The images or illustrations may not be altered in any way and need to carry the following statement of origin “Copyright by AO Foundation, Switzerland”.
Check www.aofoundation.org/disclaimer for more information.
If you have any comments or questions on the articles or the new devices, please do not hesitate to contact us.
