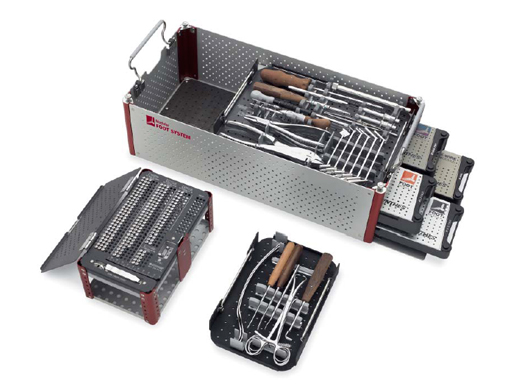

Modular Foot Set

The Modular Foot Set is indicated for osteotomies, fusions, replantations, and fracture repair of the foot.

The following devices are additions to the existing implants and instruments of the Modular Foot Set.

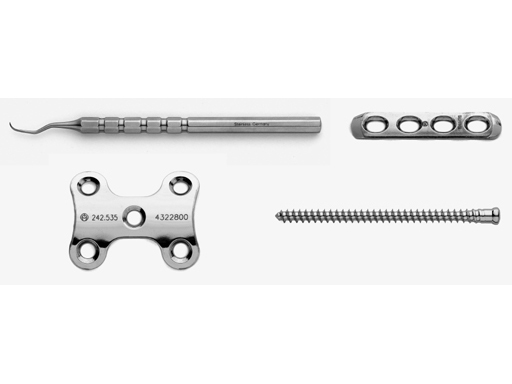

Newly designed 4-hole and 6-hole LC-DCP 2.7 to address larger foot (midfoot) fractures, osteotomies, fusions, and replantations. The standard DCU part of the hole allows for 1480 of angulation with a limited contact undersurface to preserve the periostium. The rounded edges aid in percutaneous placement and reduce soft-tissue irritation.

The Hind/Midfoot Plates 2.7 are indicated for calcaneal-cuboid fusions and lateral column lengthening. A thin 1.2 mm profile thickness is utilized to minimize soft-tissue irritation.

The 6.5 mm Cancellous Bone Screw with large core diameter is indicated for triple arthrodesis (fusion of the calcaneus, talus, navicular and cuboid) and hind/midfoot fusions of the injured foot in diabetic patients. It is a fully threaded bone screw with a cancellous thread pitch. The core diameter is 4.0 mm, the range is 60110 mm in 5 mm increments.

A Sharp Hook with small Taper features a stronger and more robust tip.

Jones fracture with pseudarthrosis in a 58-year-old man

Fixation with a 4-hole LC-DCP 2.7 whereby dynamic compression was achieved using 3.5 mm screws.
