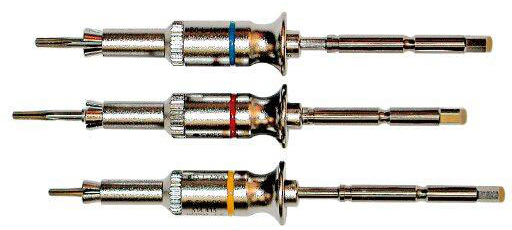

Stardrive Blades with Holding Sleeve
The 1.3, 1.5 and 2.0 mm stardrive blades with holding sleeves provide extra stability when introducing a screw through a small or remote incision. They also have a more secure grip on the screw in case of removal.

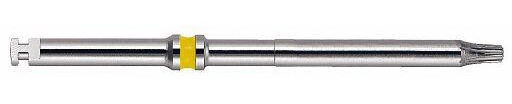

Stardrive Screwdriver Shaft, dynamic
The design of the Stardrive blades has been improved and applied to the Stardrive dimensions T4 of the 1.3 mm screws, T5 of the 1.5 mm screws, T6 of the 2.0 mm screws, and the corresponding emergency screws.
The new dynamic design allows easy screw pick up without high axial pressure as well as self-holding capacity. The design allows an optimal torque transmission and centred insertion of the screw into the bone hole.
