Cavity Creation Disposable Approach Kit

Paul Pavlov

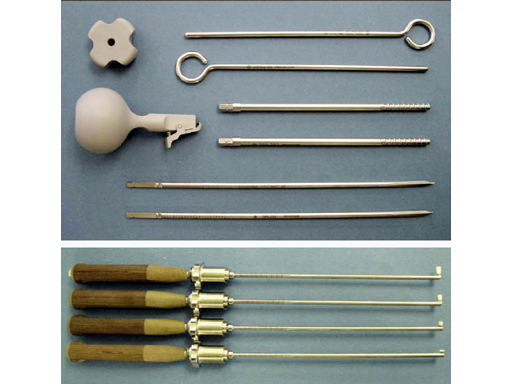

Cavity Creation System

The Cavity Creation System addresses the need to access the vertebral body transpedicularly and bilaterally. It is indicated for vertebral body compression fractures and features a disposable approach set and a reusable curette set. With these instruments, a cavity can be created that allows for a low-pressure delivery of filler material, reducing the risk of cement and marrow extravasation.

The Cavity Creation System requires fewer steps than existing systems when accessing a vertebral body. This reduces operative time and offers an easier procedure for the surgeon.

Instruments
Disclaimer

The Awl-Tipped Probe establishes the entry point and trajectory into a bony site, and guides the Working Cannula into position.

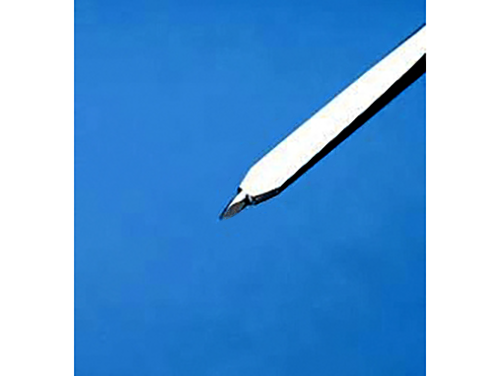

Fig 1 Awl-Tipped Probe, 220 mm

Handle, Awl-Tipped Probe

The Handle features a latch design for easy assembly with the Awl-Tipped Probe.

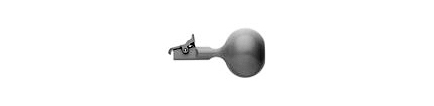

Fig 2 Handle, Awl-Tipped Probe

Working Cannula, 5 mm, threaded

The Cannula threads maintain the surgical path and protect soft tissue while controlling the advance and removal of the Cannula.

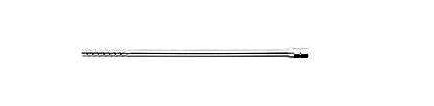

Fig 3 Working Cannula, 5 mm, threaded

Handle, Working Cannula

The Handle enables a simple snap on/snap off assembly with the Working Cannula.

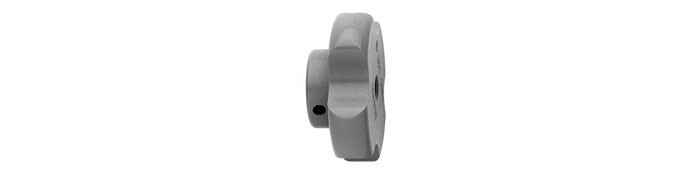

Fig.4 Handle, Working Cannula

Cannula Tamp, 4 mm OD

The Cannula Tamp features a basic loop design that allows easy manipulation in the Cannula.

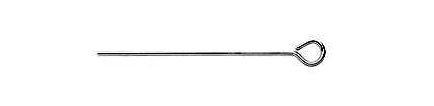

Fig 5 Cannula Tamp, 4 mm OD

> See Cavity Creation Curette Set
