EG1 High Speed System

Stephen Lewis

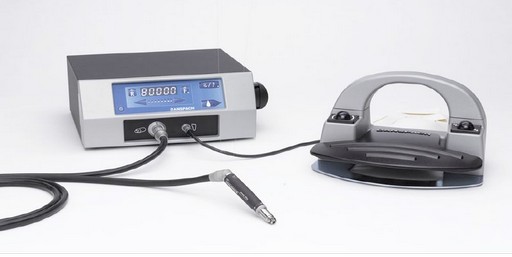

Fig 1: EG1 Electric High Speed Drill System, including electric console and foot control.

The Anspach G1 High Speed Drill is a high precision electric system designed for cutting and shaping bone, including spine and cranium (Fig 1). It has a broad range of applications within neurosurgery, neurotology surgery, skull base surgery, otolaryngology surgery and spinal surgery.

Details
Videos
Supporting Documents
Disclaimer

The G1 High Speed Drill has a variable operating speed of 10,000 to 80,000rpm and offers a power output 30% higher than existing Anspach high speed drills (XMax and eMax2 Plus systems) whilst operating at minimal sound levels. It has a small, lightweight handpiece to minimize hand fatigue (Fig 2), minimal start-up kick and low vibration for increased cutting precision and an integrated air cooling system. The drill is versatile with a wide range of dissection tools including craniotomes, burrs, and straight or angled attachments (Fig 3). The coupling mechanism is simplified (place and lock attachments and push to lock dissection tools) for greater ease of use/effortless assembly. Other features include a new irrigation tube, a hose swivel elbow and increased reliability.

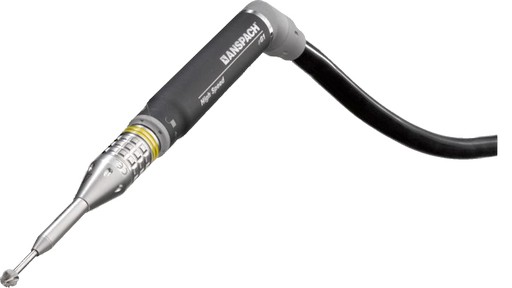

Fig 2: Aircooled handpiece, showing the coupling system for attachments and dissection tools.

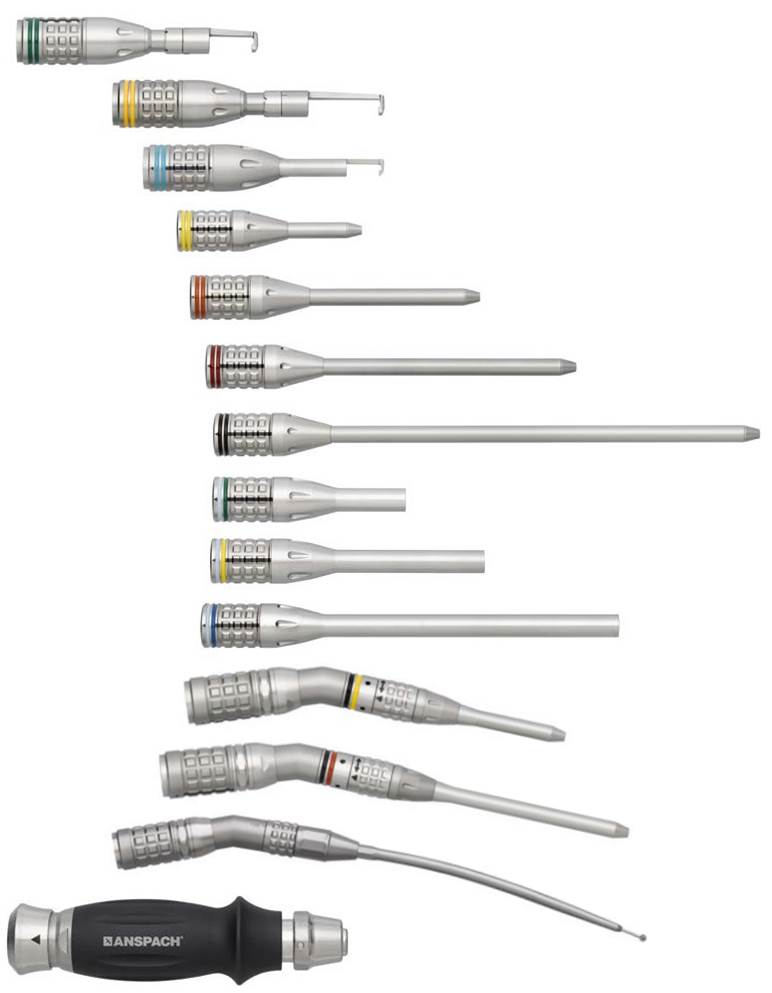

Fig 3: Portfolio of Anspach attachments for the EG1 Electric High Speed Drill System, including straight attachments of different lengths, heavy duty attachments of different lengths, craniotomies, angle attachments and perforator driver.

Powertools in Neurosurgery

A presentation delivered by Christian Matula (Austria) and Stephen Lewis (Australia) in 2016.

Optimizing Surgical Cranial Access

A presentation given by Christian Matula (Austria) and Stephen Lewis (Australia) in 2017.

Anspach EG1 Product Guide
