LCP Ulna Osteotomy 2.7 System

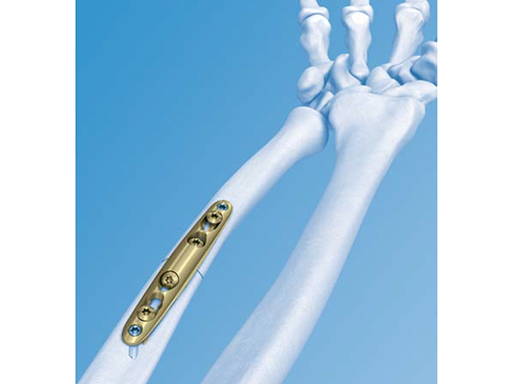

Fig 1a: The LCP Ulna Osteotomy 2.7 system contains two plates designed for shortening osteotomies of the ulna

Ulna impaction syndrome (or ulnocarpal abutment syndrome) is a degenerative condition related to excessive load bearing across the ulna aspect of the wrist, which results in chronic impingement of the ulna head against TFCC, lunate and triquetrum. This chronic impingement can cause wrist pain, swelling, limited range of motion and diminished grip strength. In most cases, a positive ulna variance causes ulnocarpal impaction syndrome. Distal radius fractures with radius collapse are also a common problem with a secondary painful positive ulna variance. Depending on stage and patient symptomatology, the treatment includes an ulna shortening osteotomy although common complications can include hardware irritations and delayed or non-unions.

The LCP Ulna Osteotomy 2.7 system (Fig 1a) is ideal for shortening osteotomies of the ulna. It allows accurate oblique or transverse osteotomy cuts and correct restoration of bone alignment, and uses a smooth and low profile plate design that minimizes hardware irritation. The system consists of plates in two sizes - short plate 6-hole, and long plate 8-hole. (Fig 1b)

Details
Clinical Cases
Disclaimer

The system consists of five drill templates with predefined shortening lengths (2.0 mm/2.5 mm/3.0 mm/4.0 mm/5.0 mm) for transverse or oblique cuts. (Fig 3) In addition, the system contains a saw guide for oblique 45 cuts, a 2.0 mm K-wire with drill tip, five parallel saw blades for transverse cuts, and five parallel saw blades for oblique (45) cuts (Fig 3)

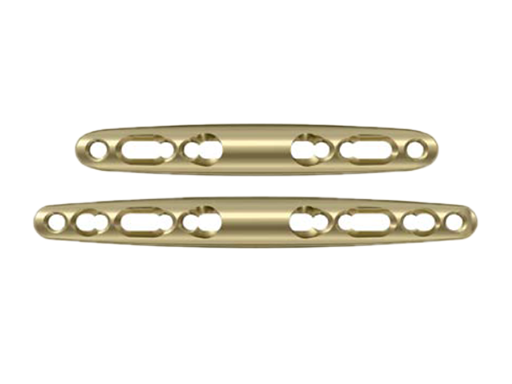

Fig 1b: The short plate 6-hole and long-plate 8-hole.

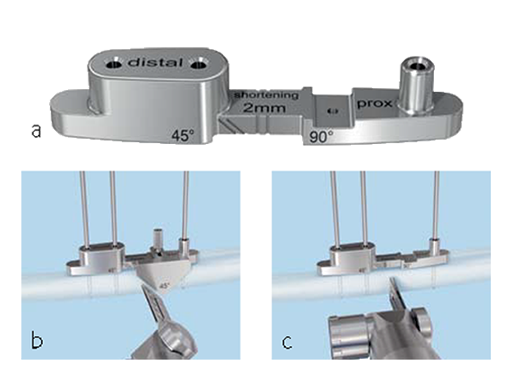

Fig 3: Image depicts available drill and saw guides contained in the system.

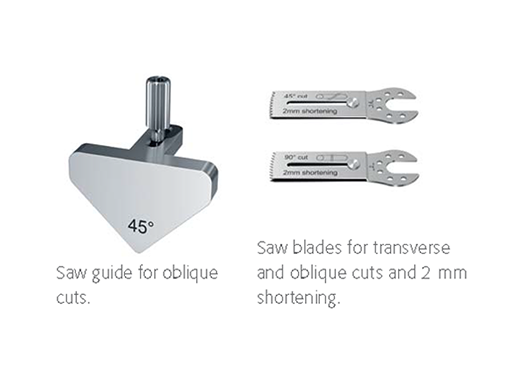

Fig 3: Image depicts available guides and instruments contained in the system.

Technique for usage

First of all, either a transverse or oblique osteotomy has to be selected. Screw holes for the plate need to be drilled at the right place before the osteotomy is done. A special tool helps get a precise parallel osteotomy cut, but the instrument will only work on a flat surface. A bent or curved bone will require a larger incision. If the plate toggles, either the bone needs to be flattened or the plate should be positioned more proximally. For an oblique cut, a guide is used for marking the osteotomy and then removed. The correct usage of the jig (Fig 4) is important for accurate shortening, and proper rotation alignment needs to be ensured. Sufficient inter-fragmentary compression (good friction of the whole osteotomy surface) is needed. In oblique osteotomies, the adequate length of the lag screw (screws should be used 1 mm longer than measured) is mandatory for a good compression. Depending on bone quality and the amount of shortening required, a sufficient number of bi-cortical locking screws has to be used. In patients with hard bone, it is advisable to use the dedicated tap.

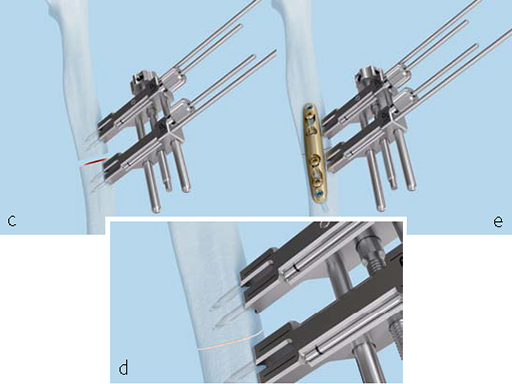

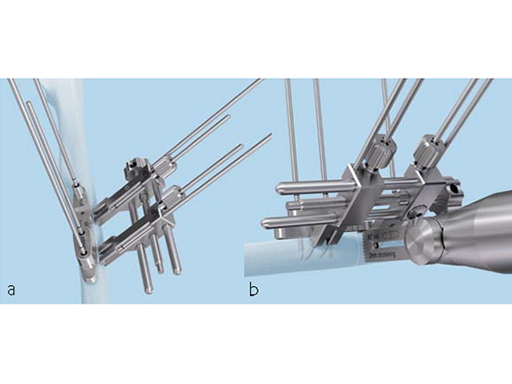

Fig 4: Image depicts jig for correct alignment in use.

In summary, the LCP Ulna Osteotomy 2.7 system leads to a lower complication rate, reduced non-union rate, and reduced postoperative pain, as it allows for a shorter incision, more precise cutting, better alignment, and minimizes hardware irritation, which greatly reduces the need for plate removal, if the correct surgical technique is followed.

Fig 4: Image depicts jig for correct alignment in use.

Case 1: Distal radius fracture

Cases provided by Doug Campbell, Leeds, UK; Ladislav Nagy, Zurich, Switzerland; and Juan Gonzlez del Pino, Madrid, Spain.

A 69-year-old female patient had suffered a right distal radius fracture one year earlier, and received conservative management. Symptoms included pain and impaired function about the wrist and forearm, with decreased forearm rotation. Painful DRUJ (DASH: 34, PWRE: 29).

The x-ray showed ulna variance of +3 mm

Normal sagittal and coronal alignment of the distal radius. Surgery was performed, with the amount of shortening being 4 mm. Transverse cut.

The outcome included pain relief and improved forearm rotation at 2 months as well as bone healing at 4 months (a). Early osteotomy site remodeling at 6 months.(b) Final remodeling at12 months. (c) Outcome at 1 year and 6 months (d): DASH: 11, PWRE: 13.

Case 2: Painful ulno-carpal abutment

A 32-year-old man suffered torsional trauma about the right wrist, with TCFF rupture. A failed arthroscopic repair had taken place. Constitutional ulna plus. Symptoms included pain and impaired function about the wrist and forearm. Painful DRUJ (DASH: 22, PWRE: 21).

The x-ray showed ulna variance of +3 mm (a). Surgery was conducted with an amount of shortening of 4 mm, transverse cut.

Postoperative outcomes included pain relief at 1 month and bone healing at 4 months (a). Early osteotomy site remodeling at 7 months (b) and final remodeling at 12 months (c). Outcome at 14 months (d): DASH: 9. PWRE: 5

Case 3: Oblique osteotomy

A 48-year-old female nurse had a diagnosis of a degenerative central TFCCrupture, with chronic ulnocarpal abutment.
The amount of correction required was 2.5 mm. The preoperative x-ray showed positive ulna variance.

Diagnosis of a degenerative central TFCCrupture, with chronic ulnocarpal abutment.

Drill template introduced for shortening, drill holes prepared (bolts), and saw guide used for the oblique cut (45 degrees). Once the bone slice was removed, the saw guide was replaced with the proximal plate, and screwed in (lag screws and locking screws).

Immediate postoperative x-ray (a/b) and healed osteotomy 4 months post-operative (c/d).
