2.4 mm VA -Locking Intercarpal Fusion System

Jesse B Jupiter, Doug Campbell, Ladislav Nagy, Juan Gonzàlez del Pino, Tom Fischer, Fiesky Núñez

Fig 1: VA Locking Intercarpal Fusion Plate

Longstanding scaphoid nonunion advance collapse (SNAC) or scapholunate advanced collapse (SLAC) can lead to a painful wrist with limited range of motion. Midcarpal fusion, otherwise known as a four-corner fusion, is a reliable procedure for treating painful SNAC and SLAC wrists, with preservation of functional wrist motion.  The VA-locking intercarpal fusion system (Fig 1) presents a major technological and conceptual step forward in reconstructive wrist surgery and midcarpal fusion specifically.

Midcarpal fusion involves excision of the scaphoid in order to address the painful radioscaphoid osteoarthritis. The midcarpal joint needs to be stabilized due to potential pain and arthritis depending on the stage of SLAC/SNAC. Stabilization is performed by arthrodesis of the lunate, capitate, hamate and triquetrum, subsequently named a 'four-corner fusion.' As the radiolunate joint is usually spared from arthritic changes, there is normally sufficient and pain-free residual motion between the lunate and the radius.

The 2.4 mm VA-locking intercarpal fusion system combines a circular plating technique with 2.4 mm variable angle locking technology and dedicated instrumentation . The circular plate design with a smooth surface and rounded edges minimizes soft-tissue irritation (Fig 2). To avoid impingement, proper positioning of the fusion as well as accurate placement and recession of the implant is mandatory. In addition to the standard reaming guide (Fig 3 in Instrument tab), the new reduction reaming guide permits reduction, compression and stabilization of the fusion site during the reaming procedure (Fig 4 in Instrument tab). Laser markings on the reamer support the surgeon by precisely controlling the depth of reaming for optimal countersinking of the plate (Fig 5 in Instrument tab).

The VA-locking plate holes accept both 2.4 mm cortex and VA locking screws. The use of cortex screws provides the option for compression by pulling the bone to the plate and locking screws enhance fixation in cancellous bone. The result is an extremely rigid construct that can withstand the strains of early postoperative mobilization. Midcarpal fusion provides a functional wrist motion achieving a minimum of 30° extension, 30° flexion, and 30° combined ulnar-radial deviation. This '30° rule' enables the patient to perform up to 90% of daily living activities.

The available two plate sizes include a 6-hole plate with a diameter of 15 mm, and a 7-hole plate with a diameter of 17 mm to fit different sized patients and applications.

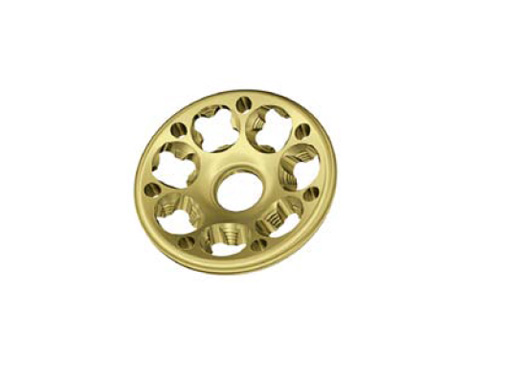

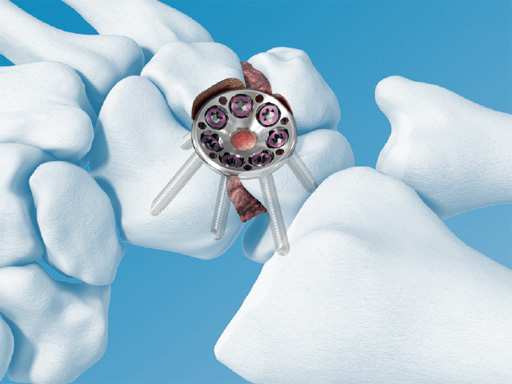

Fig 2: Seven-hole circular plate. Note the 2.4 mm variable angle locking holes, as well as thin holes for temporary fixation using K-wires. The central, plain hole is used for cancellous bone graft placement at the junction of the four bones to be fused.

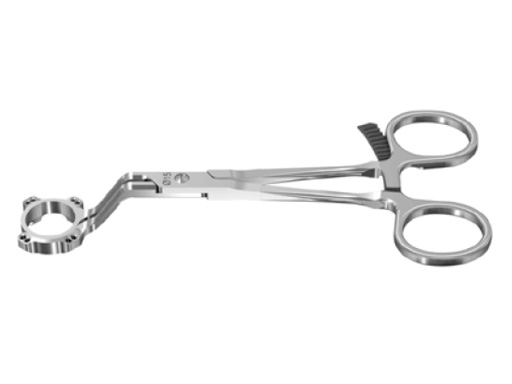

Fig 3 Standard reaming guide with four pairs of K-wire fixation holes.

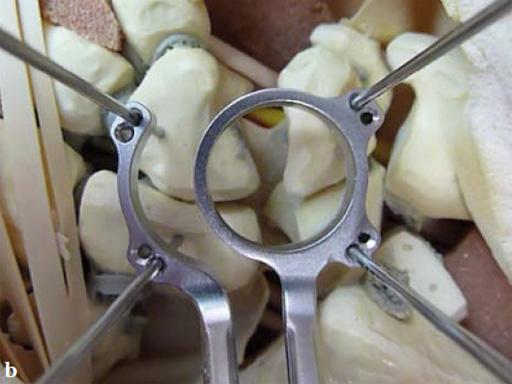

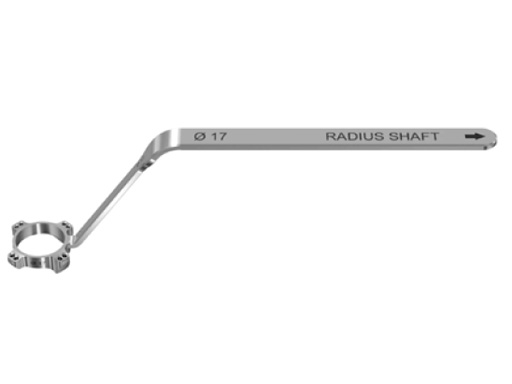

Fig 4a The reduction reaming guide also allows application of compression on the carpal bones.


Fig 4b The reduction reaming guide allows midcarpal distraction for bone graft packaging, and then application of compression at the carpal bones junctions.

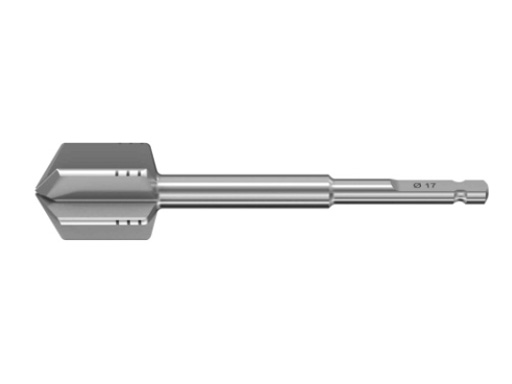

Fig 5 The reamer has 6 cutting teeth for the improvement of cutting performance. The laser markings ensure a safe and precise reaming depth.

Case 1: SNAC wrist stage 3. Operative procedure and technical details.

Case provided by Ladislav Nagy, Zrich, Switzerland, and Fiesky Nez, Valencia, Venezuela.

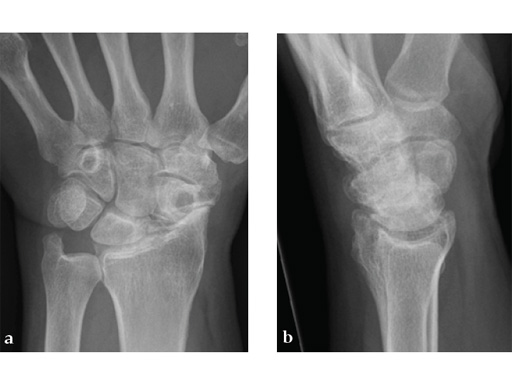

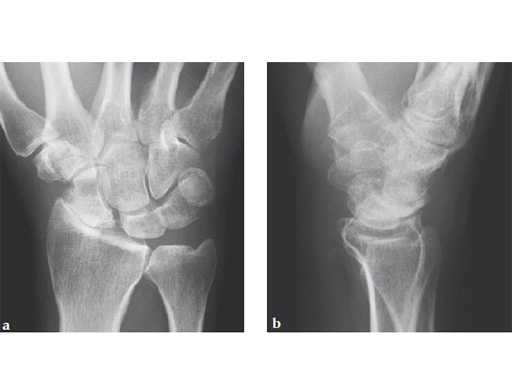

Fig 1ab Preoperative x-rays. Notice the midcarpal joint destruction and the DISI deformity of the lunate.

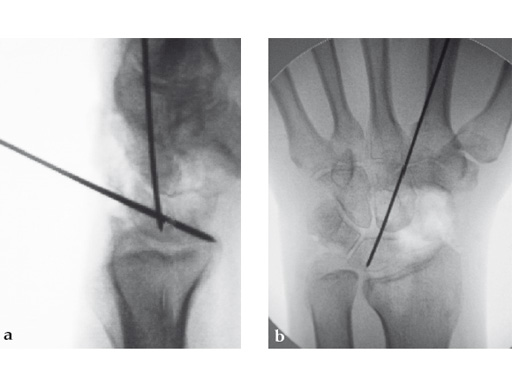

Fig 2ab Dorsal intercalated segment instability correction and K-wire fixation.

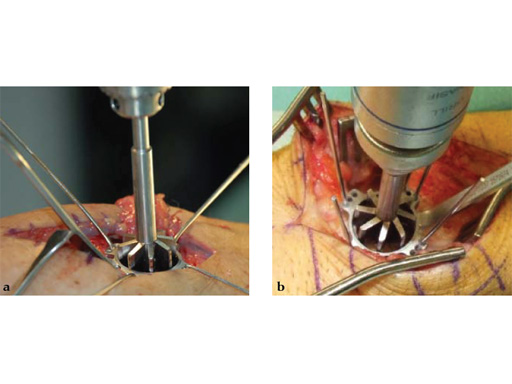

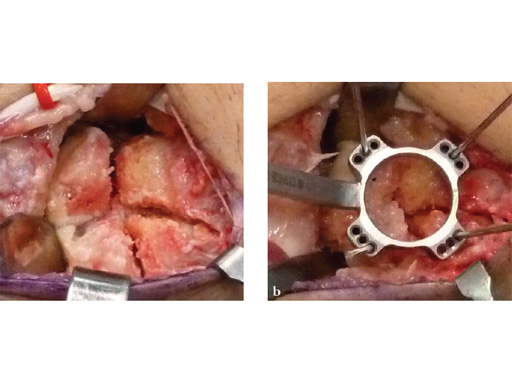

Fig 3ab Bone debridement. Guide positioning and fixation.

Fig 3c Bone debridement. Guide positioning and fixation.

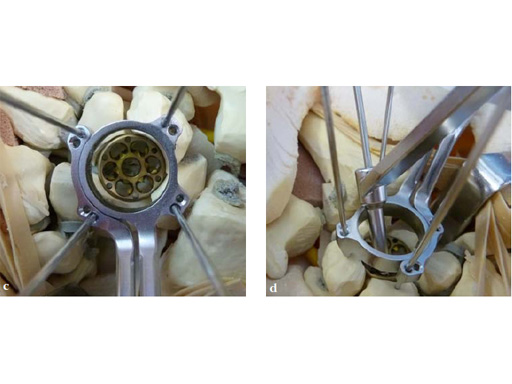

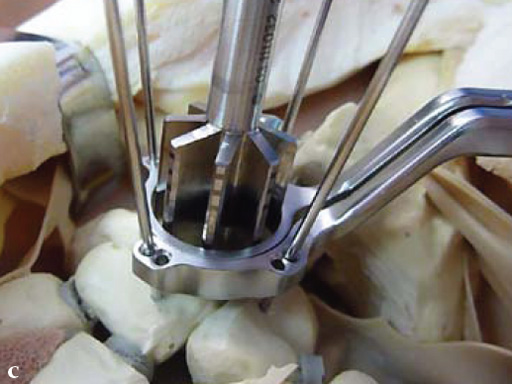

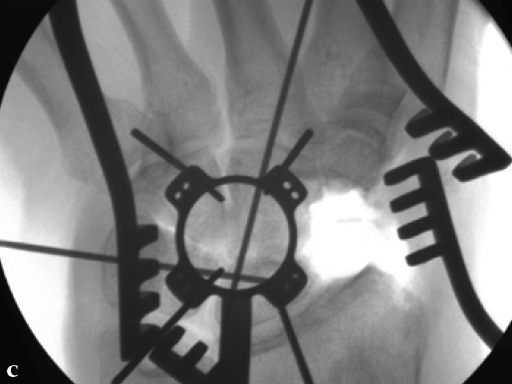

Fig 4c Once the carpal junctions have been putting closer by the new reduction-compression guide, reaming is done.

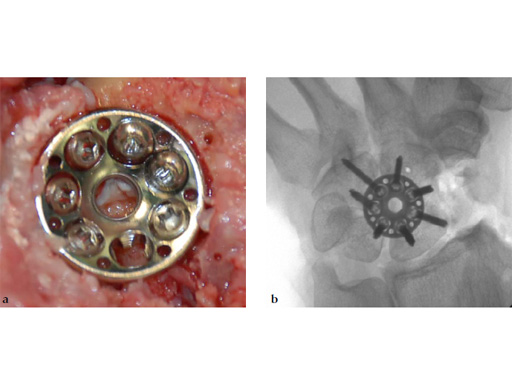

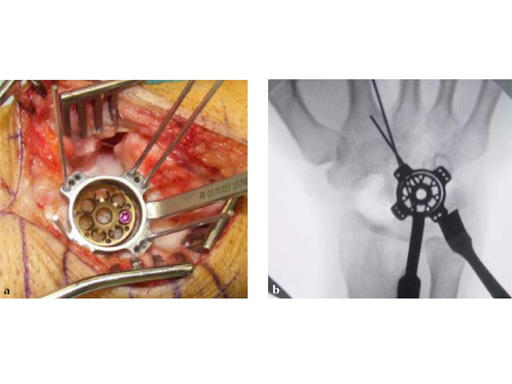

Fig 5ab Plate positioning and fixation. The combined VA-locking-standard guide allows drilling in the appropriate direction.

Fig 5cd Plate positioning and fixation. The combined VA-locking-standard guide allows drilling in the appropriate direction.

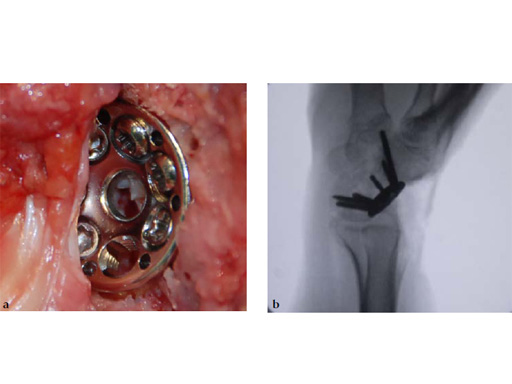

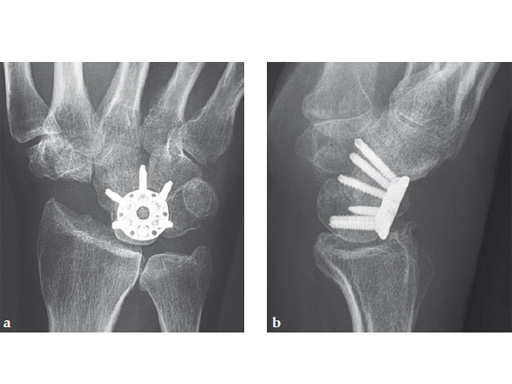

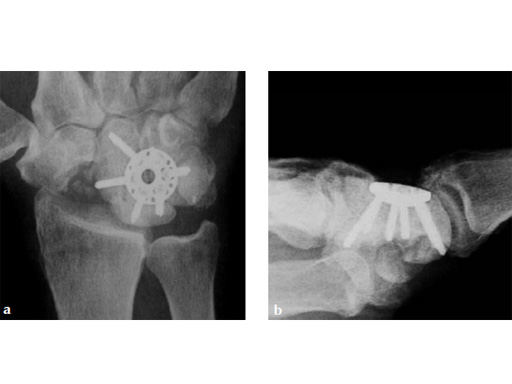

Fig 6ab Final appearance of fixed plate.

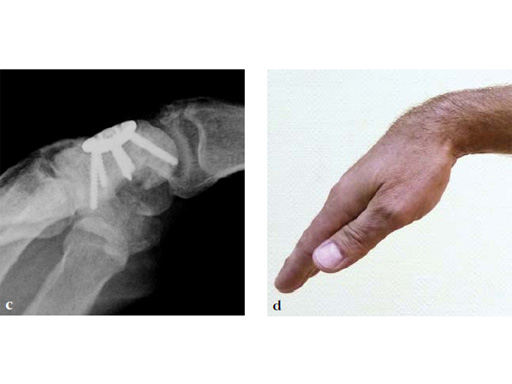

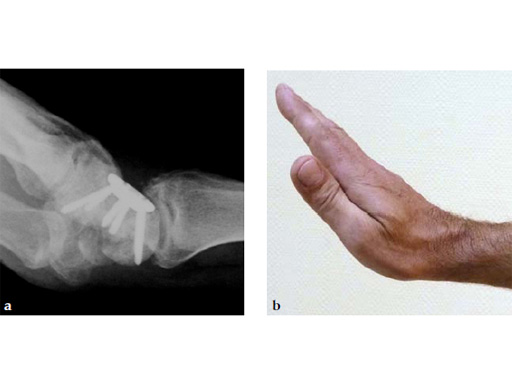

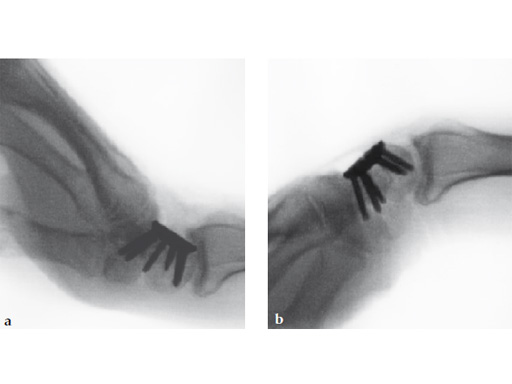

Fig 7ab No impingement of the plate against the dorsal rim of the radius in extension.

Case 2: Early degenerative wrist stage 3 secondary to a necrotic and collapsed proximal pole nonunion.

Case provided by Ariane Scheller, Berlin, Germany

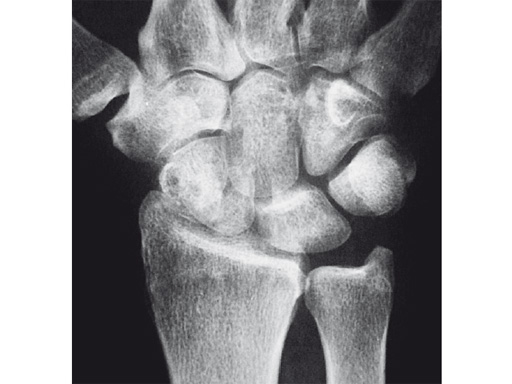

Fig 1ab Preoperative x-rays. Note the carpal collapse a a b nd DISI deformity.


Case 3: Painful SNAC wrist in a 42-year-old man.

Case provided by Juan Gonzlez del Pino, Madrid, Spain

Fig 1 X-ray shows SNAC wrist.
