Mandible External Fixator II

After the release of the first mandible external fixator in July 2004 the feedback from clinicians, oftentimes requesting more technical ease and versatility, has lead to the development of the mandible external fixator II.

Although the mandible external fixator II system comes with many new features, it addresses the same clinical indications as the original system:

Severe open mandibular fractures
Highly comminuted closed fractures
Nonunions and delayed unions (especially associated with infection)
Tumor resections
Facial deformity correction
Gunshot wounds
Panfacial fractures
Burn maintenance
Bone grafting defects

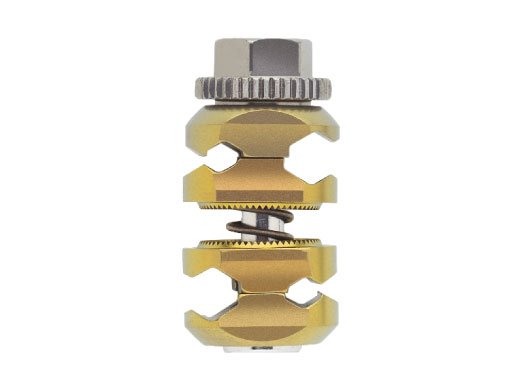

A strong impetus from surgeons was the request for an increased number of snap-on clamps in the kit. Thus instead of originally 8 clamps the new system contains 12 of the newly developed parallel clamps. Distinguishable by their purple color half these clamps can be used with two 2.0mm K-wires to secure small fragments, e.g. in the condylar process. For this purpose 2.0 K-wire are now included in the set as well.

For the percutaneous instrumentation a new drill guide & obturator for 2.0 mm & 2.5 mm K-wires has been developed.

The new cannula & orbturator is 1 cm longer than its predecessor. The set contains self-drilling anatomic Schanz screws with two thread lengths and a shoulder stop to prevent overinsertion. The shaft length of the screws is adapted to the local skin thickness and with respect to the regional geometry of the mandible (symphysis, body, ramus). The shaft of the Schanz screws allow for using devices with quick coupling.

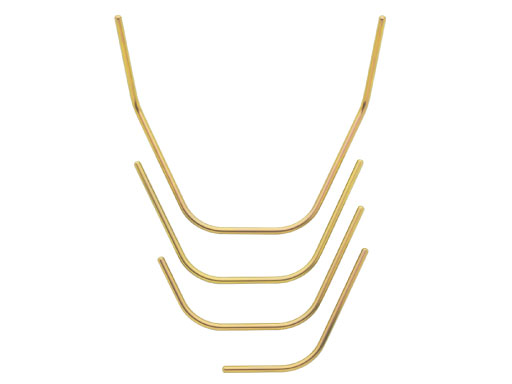

The 4.0 mm titanium connecting rods are available in four sizes (full mandible, full mandible with ramus, three-quarter mandible, and one-half mandible). Anatomically pre-bent to the mandibular shape the metal rods cover a wide anatomic variety but can be contoured to match individual patient needs with the included rod bender.

To ensure an optimal stability of the framework construction the connecting rods should be positioned approximately one fingerbreadth away from the patients skin surface, evenly around the mandibular circumference, in order to keep the cantilevers along the Schanz screws short. At least two Schanz screws should be placed on large segments: One in close proximity (10 mm) to the fracture or resection line and another one preferably another 10 mm away from it.

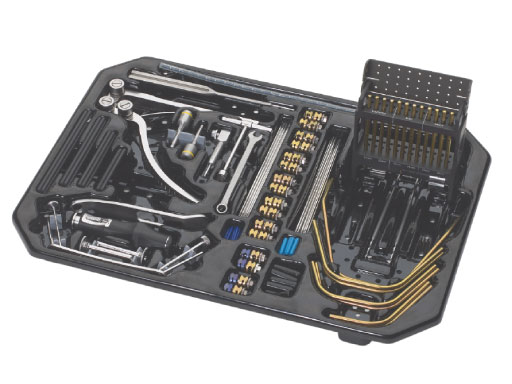

To allow the surgeon to build a longer modular frame, a new 120 mm carbon fiber connectingrod has been included in the set. Extended carbon fiber rods with lengths of 140, 160, 180, and 200 mm are available on request, but will not fit inside the tray of the graphics case.

New Instruments specifically designed for this system are the ratcheting Screwdriver Handle, the rapid driver and the Schanz screw adaptor for tightening of the Schanz screws.

The new mandible external fixator II can be adjusted throughout the whole OR procedure and is MR safe.

Clinical Cases
Disclaimer

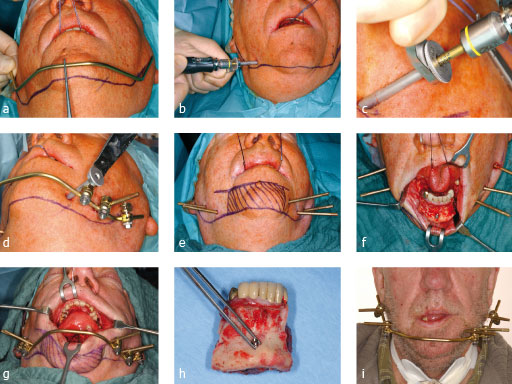

Fig 1ai: Stabilization of the mandible during primary resection of a floor-of-the-mouth carcinoma with infiltration of the sympyseal bone. The sequence shows the application starting in the angles, stepwise assembly, temporary removal of the connecting bar for en bloc tumor resection and remounting.

Case images courtesy of Carl-Peter Cornelius, Mnchen, DE
