Modular/Compact Foot Set

The LCP Compact Foot Set is indicated for phalangeal, metatarsal, tarsal, extra- and intraarticular calcaneus fractures as well as osteotomies and arthrodesis in the foot.

With these additions, the LCP Compact Foot Set now offers a wide range of anatomical precontoured and adaptable plates for trauma and orthopedics in three dimensions (2.0, 2.4, and 2.7mm). The low profile design and the completely buried screw heads make the Set soft tissue friendly.

Details
Instruments
Disclaimer

All plates of the Compact Foot Set are now available as Locking Compression Plates (LCP) with the advantages of reduced primary and secondary loss of reduction, reduced pull-out of screws, less periosteal compression, better hold in osteoporotic bone, more stable fixation, and bridging of fragments. All plates are available in titanium and stainless steel.

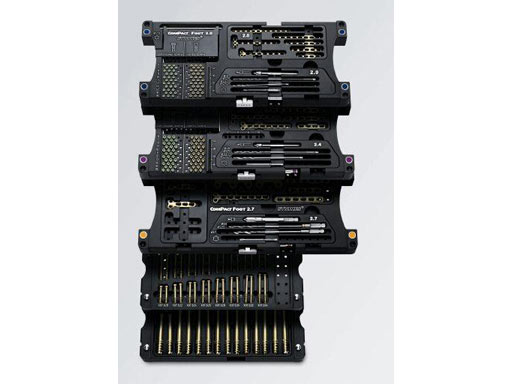

The LCP Compact Foot Set comes in a modular structure. Separate Vario cases for forefoot and hindfoot surgery are offered. Color-coded instruments and modules enable easy identification in the OR.

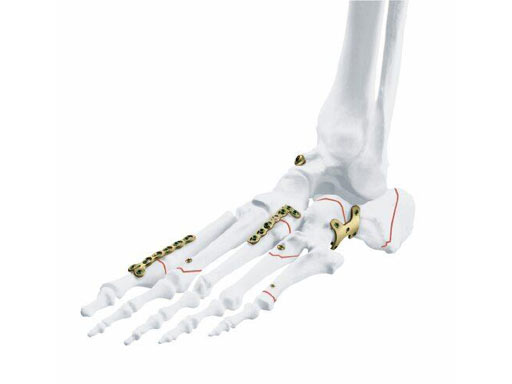

Fig 1 LCP Foot Plates

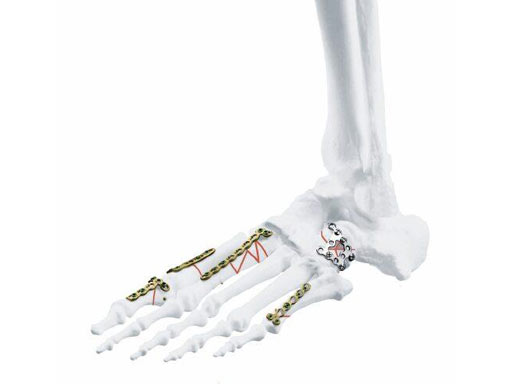

Fig 2 LCP Foot Plates

LCP Plate 2.0 and 2.4, straight, 48 holes, TiCP

These plates correspond to the respective former LC-DC plates, thus are intended for the same indications, including the new features of the combi-hole/locked screws.

LCP Plate 2.0 and 2.4, straight, 48 holes, TiCP

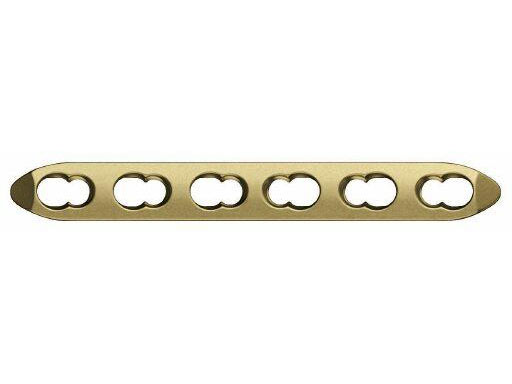

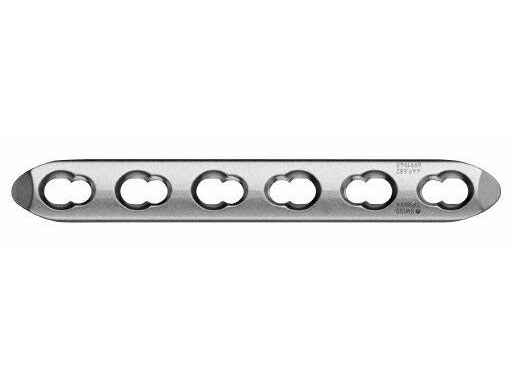

LCP Plate 2.7, straight, 412 holes, TiCP

Particularly for metatarsal shaft fractures and correcting osteotomies of the first ray.

LCP Plate 2.7, straight, 412 holes, TiCP

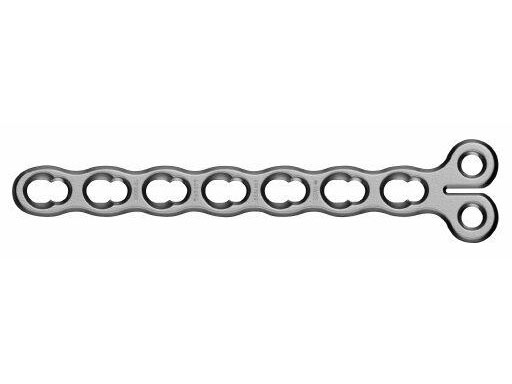

LCP Condylar Plate 2.7, TiCP

Metatarsal fracture fixation especially in the metaphyseal zone and close to a joint.

LCP Condylar Plate 2.7, TiCP

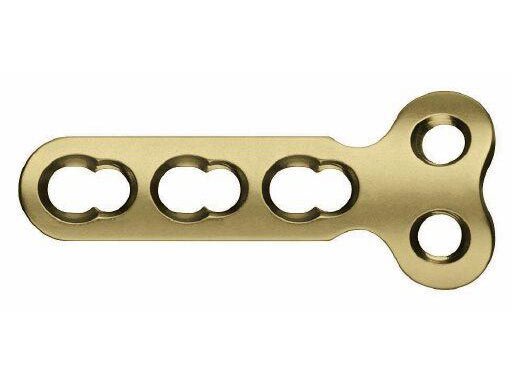

LCP T-Plate 2.7, 3 & 4 holes, TiCP

Particularly for medial fusions in the tarso-metatarsal area.

LCP T-Plate 2.7, 3 & 4 holes, TiCP

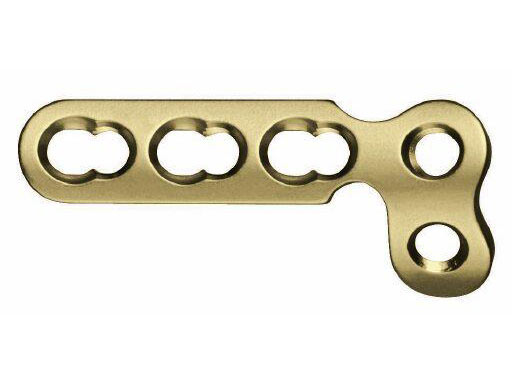

LCP L-Plate, oblique, 2.7, right and left versions, 3 & 4 holes, TiCP

For fracture and fusion fixation, especially the proximal part of the fifth ray.

LCP L-Plate, oblique, 2.7, right and left versions, 3 & 4 holes, TiCP

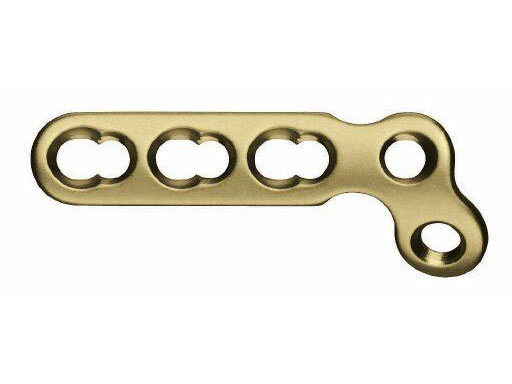

LCP L-Plate, 2.7, right and left version, 3 holes, TiCP

For proximal fracture fixation of the fourth/fifth ray or fusions to the cuboid.

LCP L-Plate, 2.7, right and left version, 3 holes, TiCP

Locking H-Plate, 2.7, 5 & 8 holes, TiCP

For fixation of correcting osteotomies of the calcaneus (eg, Evans osteotomy). Calcaneal fracture fixation of the medial and occasionally lateral wall.

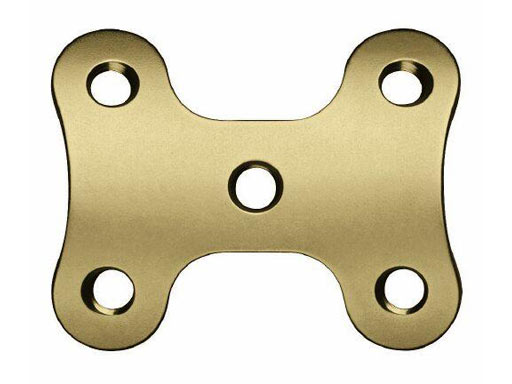

Fig 1 Locking H-Plate, 2.7, 5 holes, TiCP

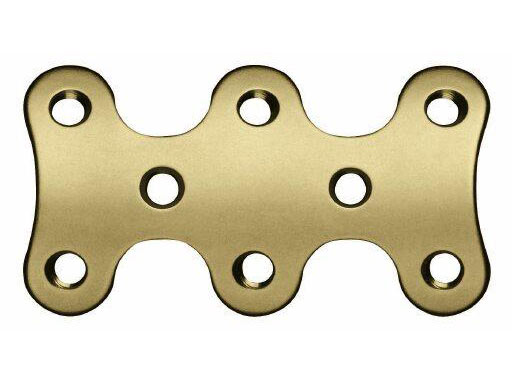

Fig 2 Locking H-Plate, 2.7, 8 holes, TiCP

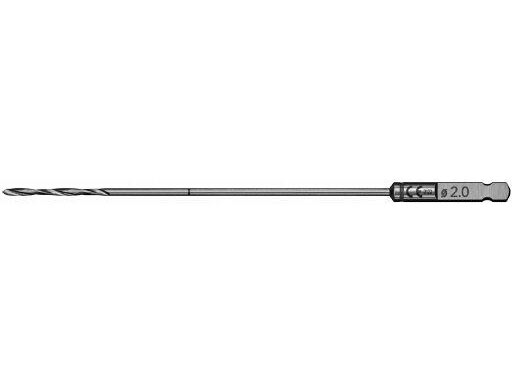

Drill Bit, with measuring scale, for Mini Quick Coupling, 2-flut, SS

The Drill Bit incorporates a measuring scale for easy determination of the screw lengths.

Drill Bit, with measuring scale, for Mini Quick Coupling, 2-flut, SS

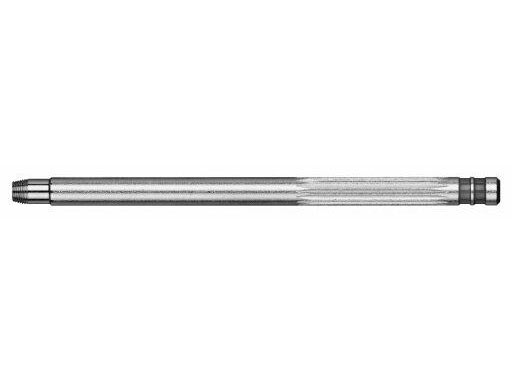

Bending Pin for LCP Plates 2.7

A Bending Pin enables bending of the threaded round holes of the LCP Plates 2.7.

Bending Pin for LCP Plates 2.7
